How to Measure UX ROI and Prove Business Value

UX ROI is the financial return of a UX investment: the monetary value of the business change it causes — support cost, working time, capacity, activation, retention, conversion or risk — compared with the fully loaded cost of the work. You can measure it when you trace a chain from a real user problem, through a design change and a measured change in behaviour, to a business mechanism that can be expressed in money, and when you are honest about the baseline, the attribution and the uncertainty.

Here is an uncomfortable truth about our industry: in fifteen years, almost no client has walked in and asked ANODA to prove the ROI of design. They ask for a redesign. They say the product “needs a refresh”, “feels outdated”, “needs some tweaking”. We are the ones who bring up the money. Every time.

I always start this conversation myself, when someone comes for a redesign or says “we just need to tweak something”. Honestly, style and colour decide very little — unless things are truly as bad as they can get. In every other case, we work with UX: with user scenarios. And measuring UX ROI is easy. Follow the money. If you can’t clearly see the benefit of an initiative, don’t do it.

That is the whole idea of this article. If a team cannot explain how a UX change will save money, earn money, release constrained capacity or reduce a material risk, it is not an investment case yet. It is a wish with a budget.

Why teams rarely measure UX ROI

If measuring UX value is conceptually simple, why do so few teams do it? Three reasons come up again and again.

First, nobody asks. Clients and executives commission redesigns because a product looks old, a competitor launched something shiny or a new leader wants to make a mark. The request arrives as taste, so it gets answered as taste. Second, the data is scattered: task times live in logs nobody reads, support volumes in a helpdesk export, costs in finance, and the design team has access to none of them. Third, it feels risky. Setting a KPI before the work starts means you can be visibly wrong afterwards — which is exactly why it is worth doing.

The result is a strange economy in which companies spend serious money on interface work and then judge it by whether the board likes the new colours. That is not a design problem. It is a management habit, and the cure is to start every UX conversation with the same question finance would ask about any other investment: what will this change, and what is that worth?

What UX ROI means — and when a calculation makes sense

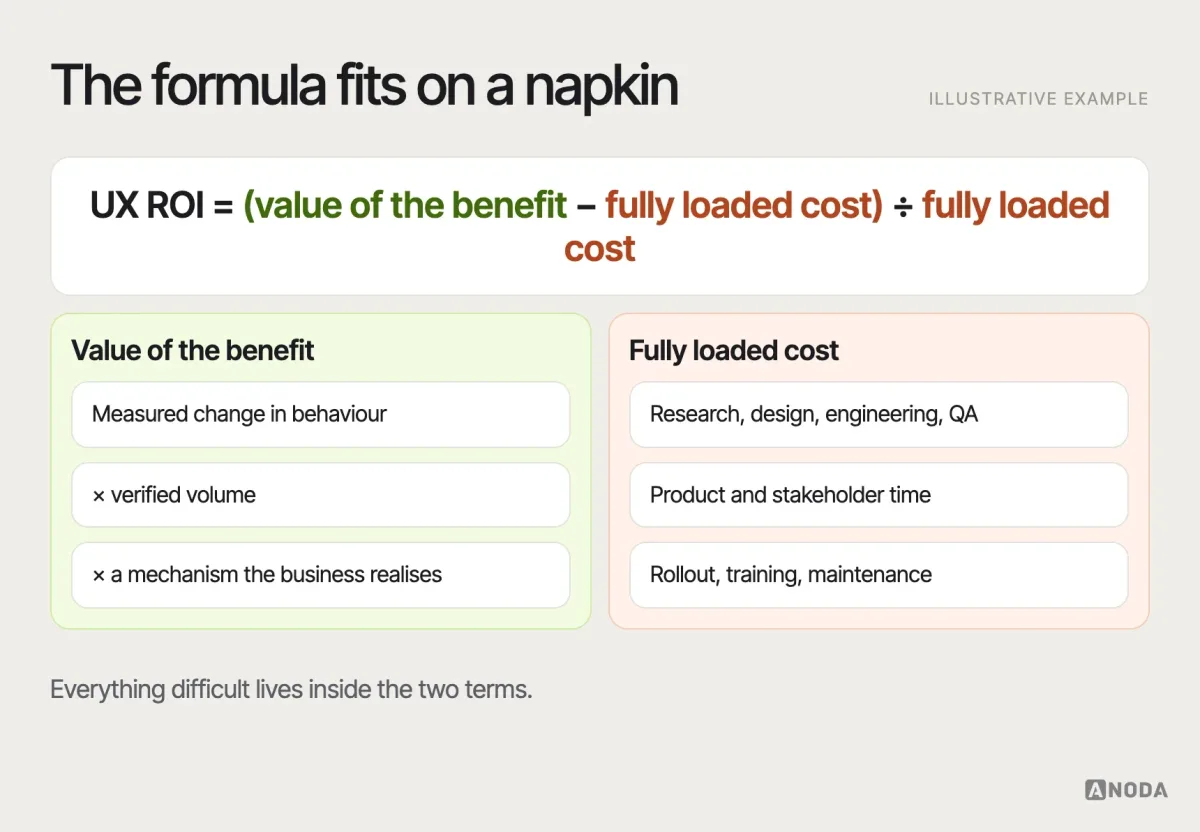

The formula is the easy part:

UX ROI = (monetary value of the benefit − fully loaded cost of the UX work) ÷ fully loaded cost

Everything difficult lives inside those two terms. The benefit has to come from something you can observe — a task done faster, a ticket not raised, a user who activated instead of leaving — scaled by how often it happens and converted into money through a mechanism the business can actually realise. The cost has to include everything the work consumed, not just the designer’s invoice.

A financial calculation makes sense when the change targets a repeated, measurable behaviour with a known volume: a task done thousands of times a day, an onboarding step every new user passes, a support topic that arrives every week. It makes less sense for a single visual refresh with no behavioural target, or for work whose main value is risk reduction — although even there, you can usually name what the risk would cost.

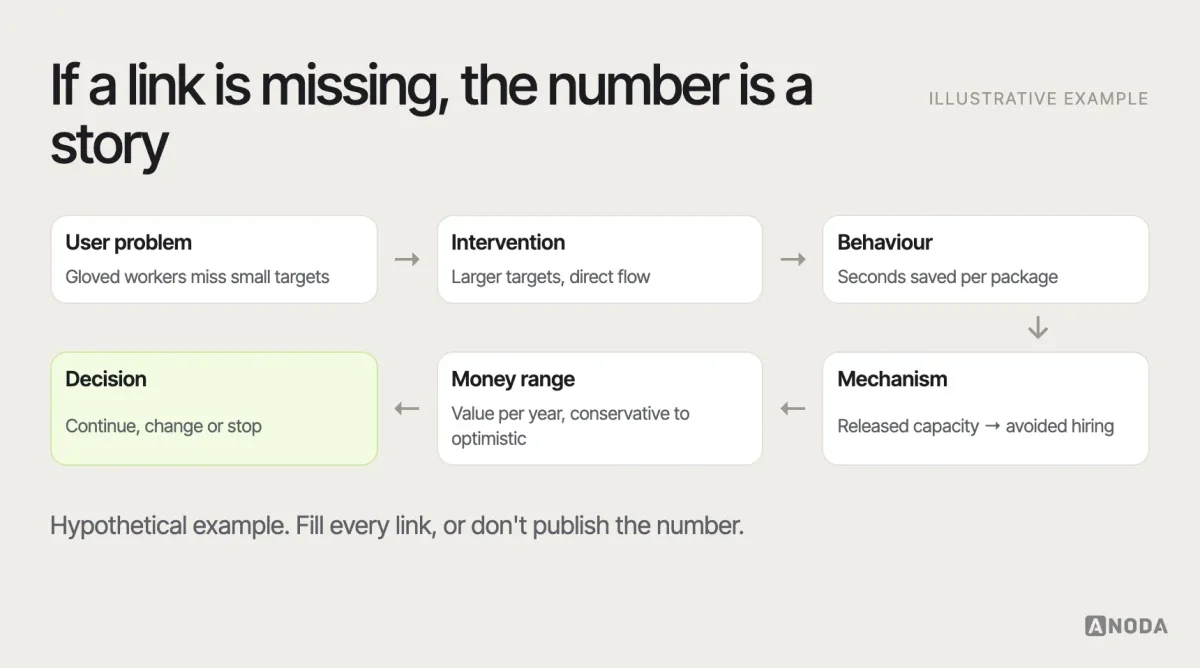

The chain we use in every engagement looks like this:

User problem → design intervention → behavioural signal → business mechanism → monetary range → decision. If you can fill in every link, you can defend the number. If a link is missing, the number is a story.

Start with a symptom, not with “we have bad UX”

The most common way a UX investment goes wrong is at the very beginning: nobody defined what is actually wrong.

Imagine you come to Doctor House and say: “I think I’m ill.” What does he do with that? He doesn’t know where to start, so he orders every test there is. Or, if your face is orange because you drink carrot juice all day, he says: stop drinking carrot juice, it’s obvious. Same with us. If your sign-up button doesn’t work, you don’t need thirty-three reports. But if you say “after 800 metres I can’t breathe and my right knee hurts” — now there is a symptom we can treat.

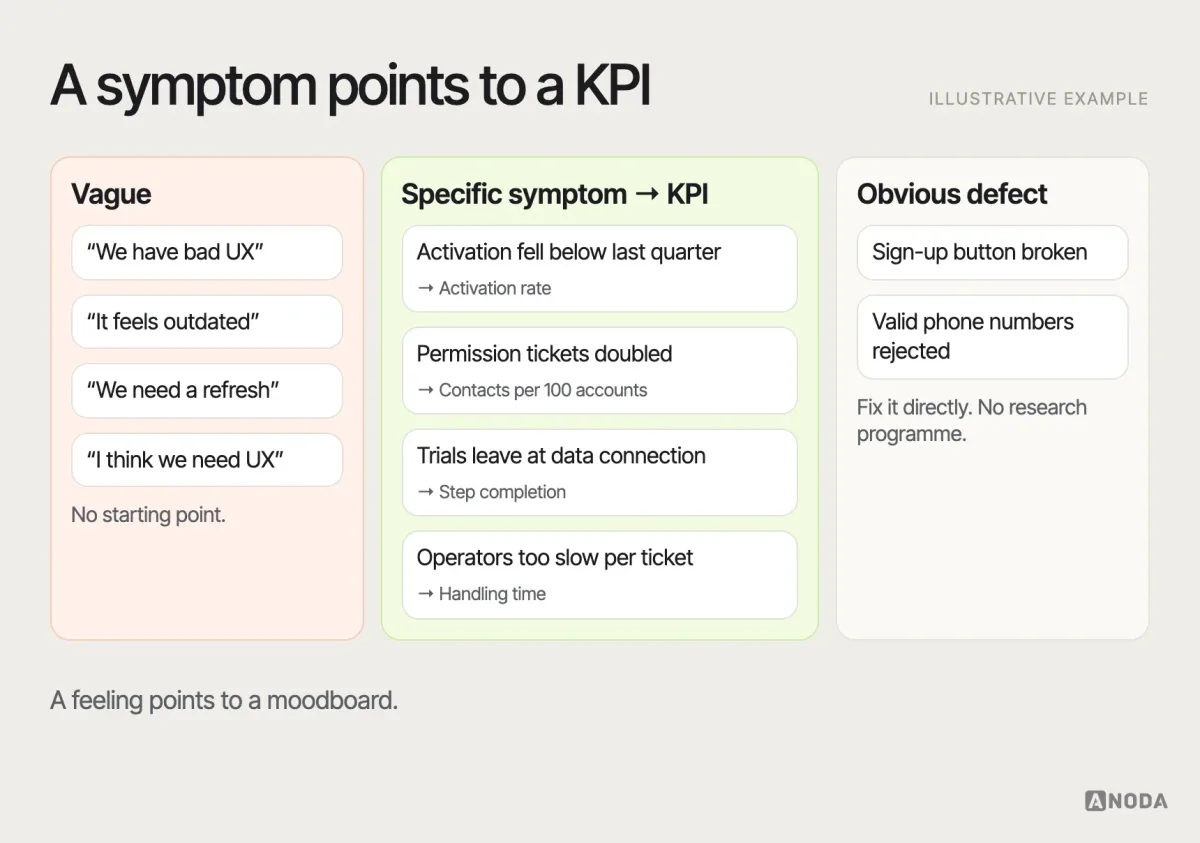

“We have bad UX” is not a diagnosis. Neither is “I think we need UX”. A specific symptom is: activation is low; churn is rising in the second month; the B2B sales cycle is too long; support is drowning in the same three questions; trial users disappear after we spent the acquisition budget on them; operators need twice as long for a task as they should. A symptom like that gives the investigation a starting point and the ROI calculation a target.

Notice how many of those symptoms are commercial rather than visual. “We have lots of sign-ups and trials, but we have already spent the budget on customer acquisition and infrastructure” is a UX question and a marketing question at the same time. UX research and marketing research look surprisingly alike once the team arrives with a concrete business question: why do these people leave, and what would make them stay? Starting from the business question keeps both honest.

And some problems do not need an investigation at all. A visibly broken sign-up button, an error message that blocks checkout, a form that rejects valid phone numbers — fix them directly. Spending weeks proving the ROI of fixing an obvious defect is its own kind of waste.

When visual design does matter to the money

None of this means visual design is irrelevant. Presentation matters commercially when the current interface is so poor that it damages comprehension or trust: text that people cannot read, a checkout that looks unsafe, a brand so inconsistent that users wonder whether they are still on the same site. In those cases, visual work has a real mechanism — fewer abandoned checkouts, fewer “is this legit?” support contacts, better conversion from people who were ready to buy.

What does not have a mechanism is repainting a product that already works because it no longer feels fresh to the people who built it. Customers do not pay for your team’s boredom. If you cannot name the behaviour that the new visual layer should change, treat it as a brand expense, not a UX investment.

Know the real user and the real working conditions

Once there is a symptom, find the people and the conditions behind it. This is where many ROI cases collapse, because the persona was invented in a meeting room.

Take a warehouse — a hypothetical example, built on the kind of operational work we design for. The workers scanning and updating package status are not “Jenny from Austin who loves her Starbucks”. They are people doing physical work in a building that is hot in summer and cold in winter, often wearing gloves, holding a small rugged Android device, sometimes working in their second language. Taking a glove off and putting it back on costs seconds. Cold fingers on a capacitive screen need several taps. Tired hands, cuts, calluses — all of it is part of the interface requirements.

We didn’t design that interface like white-collar people sitting in an office. We asked who the user really is. Not Jenny from Austin. Someone who works with their hands, who may have calluses or cuts, for whom pressing a small target is genuinely hard. That is your real user persona — and it’s how you will test your UX later: under which conditions, against which requirements.

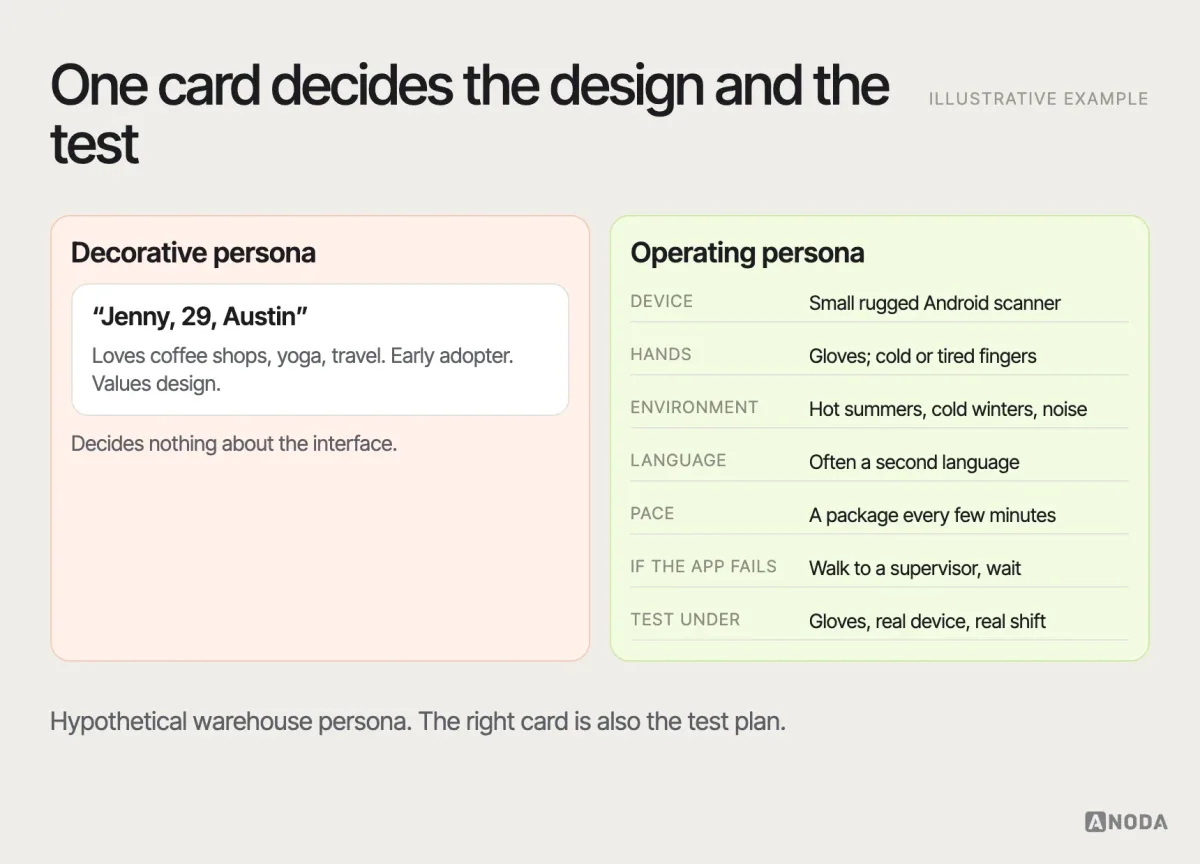

A real persona is not a biography. It is a set of operating conditions that define both the design and the test: device, environment, physical constraints, language, frequency, interruptions, what happens when the app fails.

This is also where UX research earns its place in the measurement system rather than beside it. Observation and interviews under real conditions explain why the numbers look the way they do — which step causes the delay, which misunderstanding generates the tickets — and that explanation is what makes the later ROI claim credible. A number without a mechanism is a coincidence waiting to be disproved.

Establish the baseline and the volume

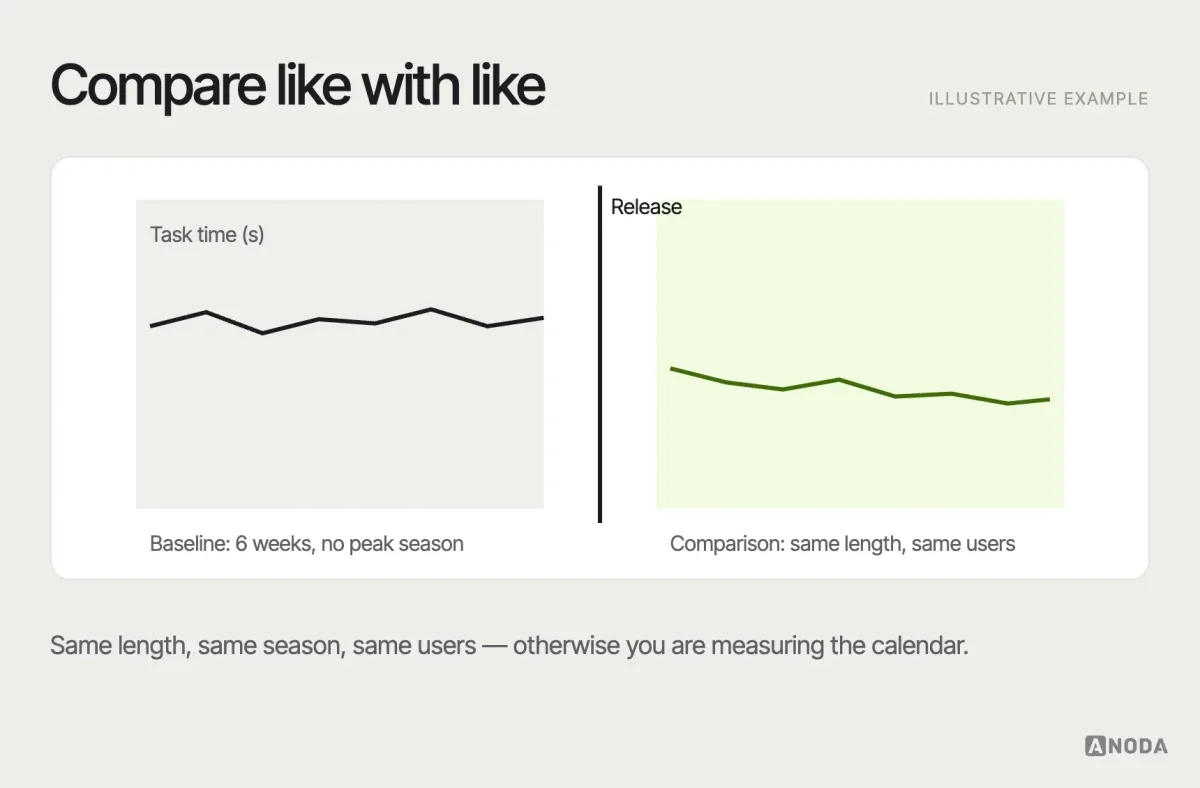

You cannot claim an improvement without knowing where you started. Before anything changes, measure the specific behaviour you intend to change — for the affected users, under their real conditions, over a window long enough to cover normal variation.

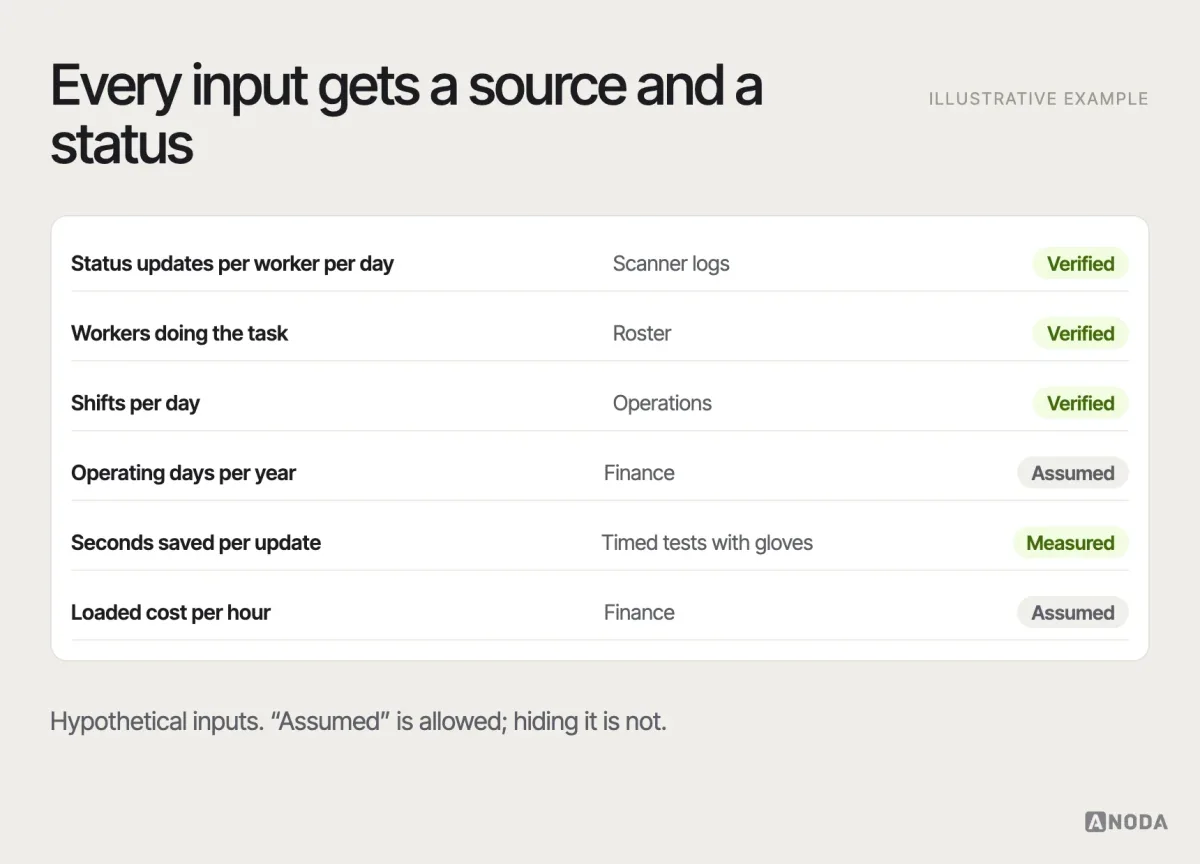

And measure the volume, because volume is what turns seconds into money. How often does the task happen? For how many people? On how many days? In how many shifts? A saving per task means nothing until you know how many tasks there are.

Measure the change per event, then scale it honestly

Now the design change: in our hypothetical warehouse, larger touch targets, stronger contrast and a more direct flow for updating a package’s status. Nothing exotic — the kind of change that comes from designing for the real conditions rather than for the office.

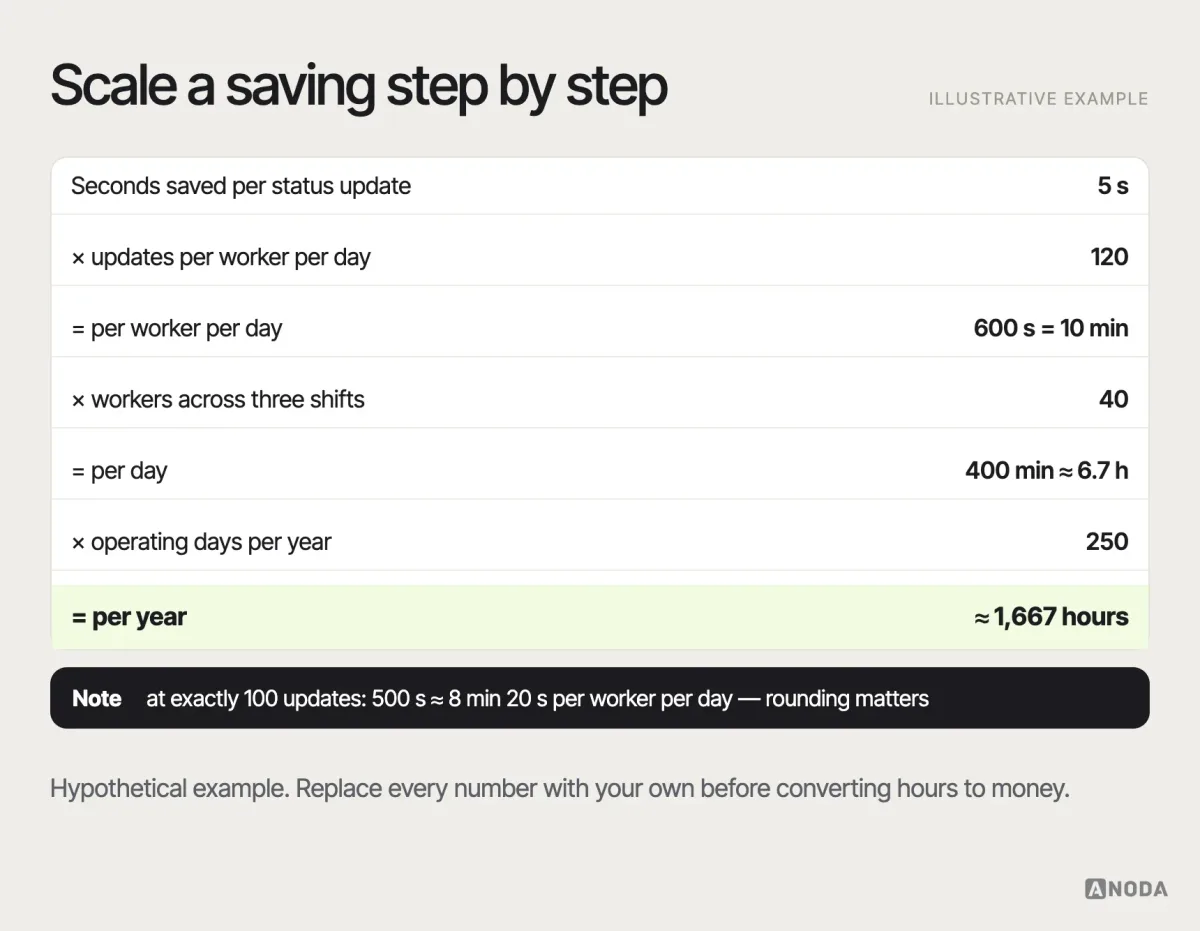

Suppose testing under realistic conditions shows the status update takes five seconds less. Here is how that scales, step by step — with every input stated, because this is exactly where ROI claims usually cheat:

• Five seconds saved per status update.
• If a worker performs 120 updates a day, that is 600 seconds — ten minutes per worker per day. (At exactly 100 updates it would be 500 seconds, about 8 minutes 20 seconds; the rounding matters.)
• If 40 workers do this task across three shifts, that is 400 minutes — about 6.7 hours of work per day.
• Over 250 operating days, that is roughly 1,667 hours a year.

Only then do you convert hours into money, using the loaded hourly cost of that role — wages plus the costs the company carries on top — from your finance team, not from a guess.

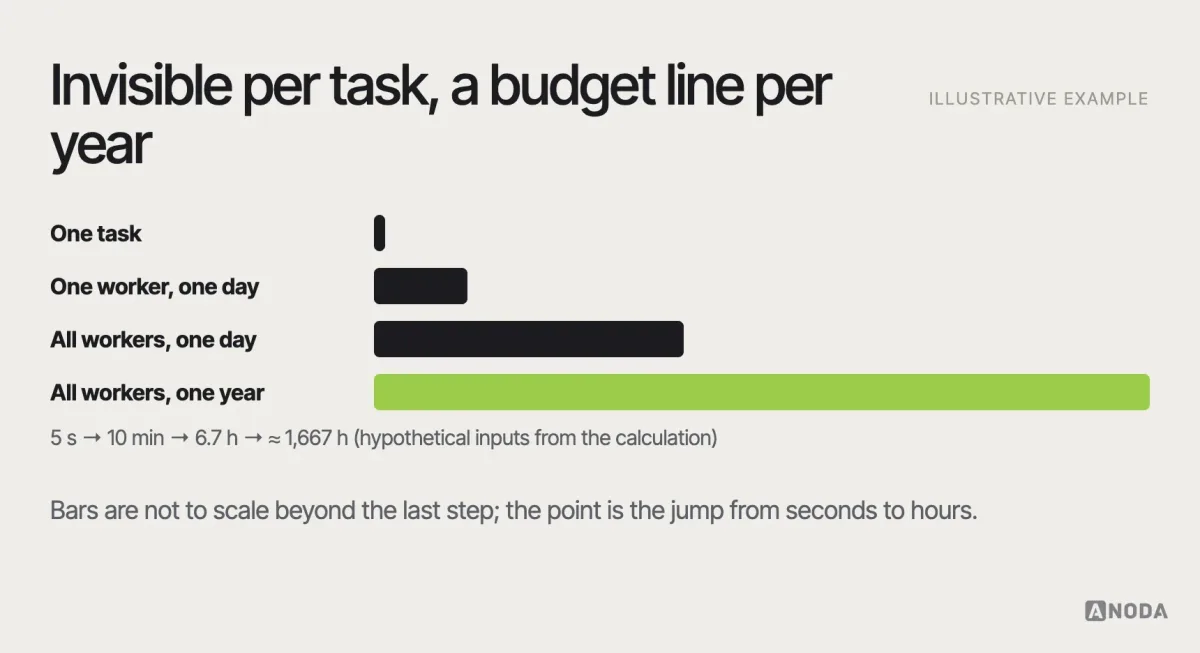

The lesson is not the specific number — it is hypothetical. The lesson is that small per-event savings can become large only after you show the real frequency, workforce, timeframe and monetary assumptions. A saving you cannot scale with verified inputs is not a result.

Ten seconds, five seconds — but when we’re talking about hundreds of users and hundreds of days a year, it’s simply a colossal figure. That’s why ROI always has to be measured in dollars and brought down to the final KPIs. When you change UX, why are you changing it? Moving buttons from left to right — what are you, Apple? You don’t need that. You should be chasing a clear benefit. Be the most mercantile person in this product.

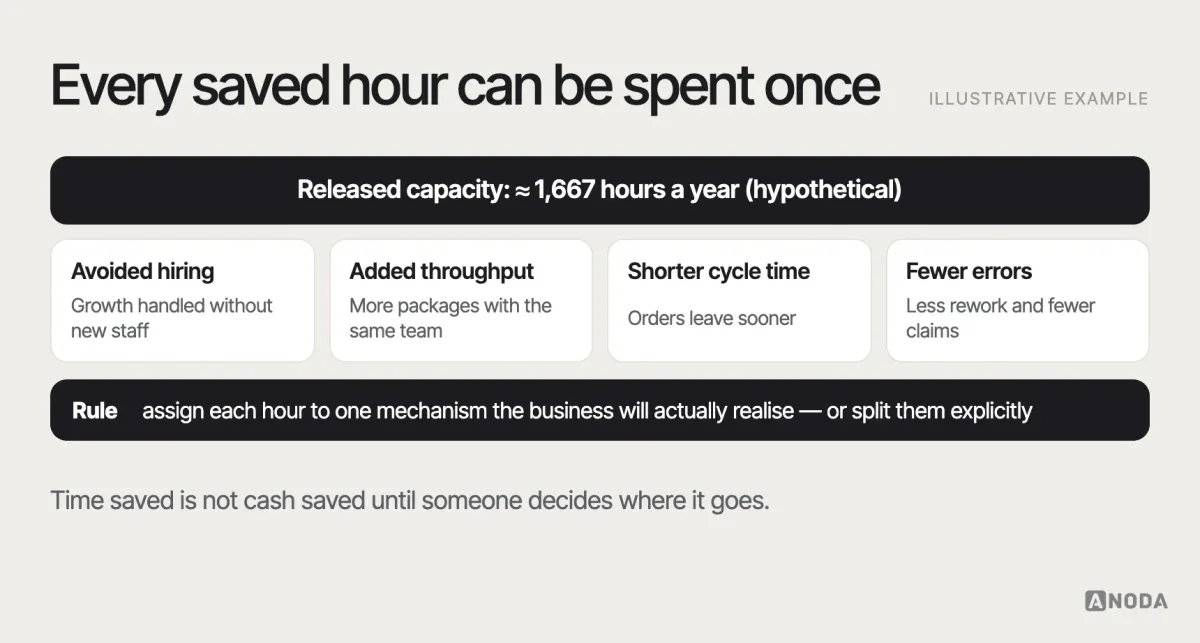

Name the business mechanism — and don’t count it twice

Saved time is not automatically saved money. It becomes money through a mechanism the business can actually realise:

• Avoided hiring. The team handles growth without adding people it would otherwise need.
• Added throughput. The same team processes more work, and the business earns from the extra volume.
• Shorter cycle time. Work finishes sooner, which may matter for customers, cash flow or service levels.
• Fewer errors and less rework. Mistakes that cost money to fix happen less often.
• Reliability. Less time lost to crashes, workarounds and waiting for a supervisor.

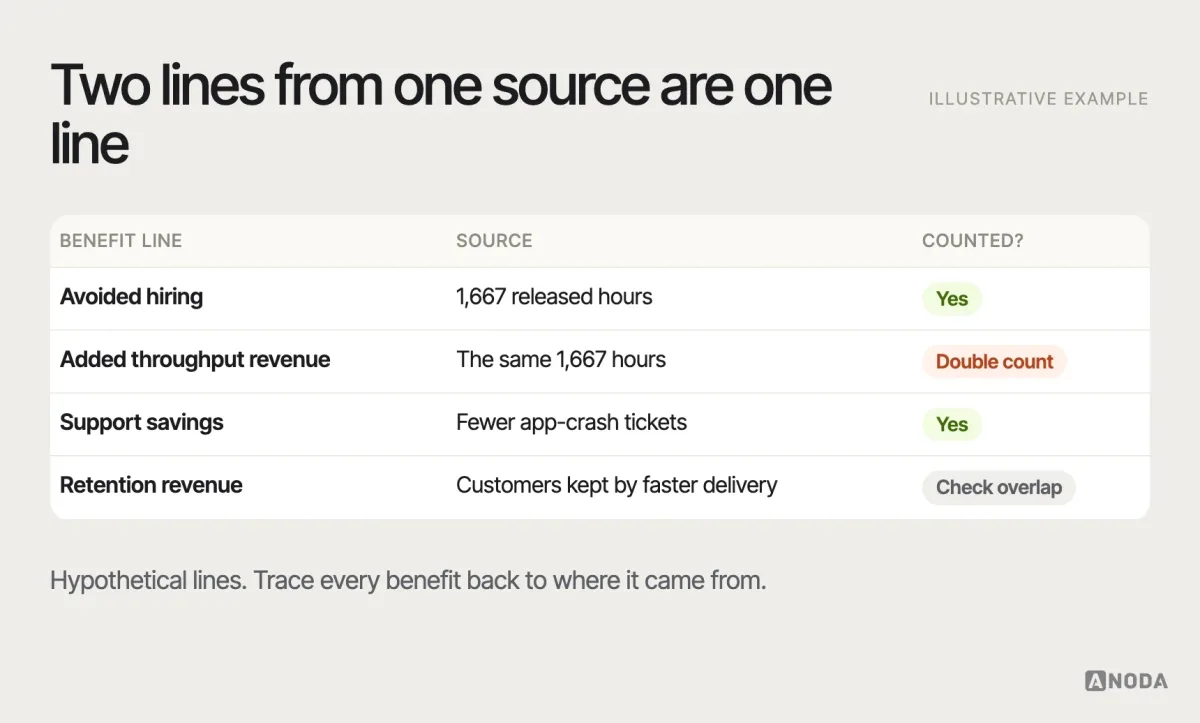

These are different mechanisms, and the most common ROI mistake is adding them all together. If released capacity is used to avoid hiring, the same hours cannot also be counted as added throughput. Pick the mechanism that describes what the business will actually do with the time, or split the hours explicitly between them.

And time saved does not automatically mean layoffs or cash. In most businesses it means released capacity: people doing more valuable work, handling growth, or finishing sooner. Say which.

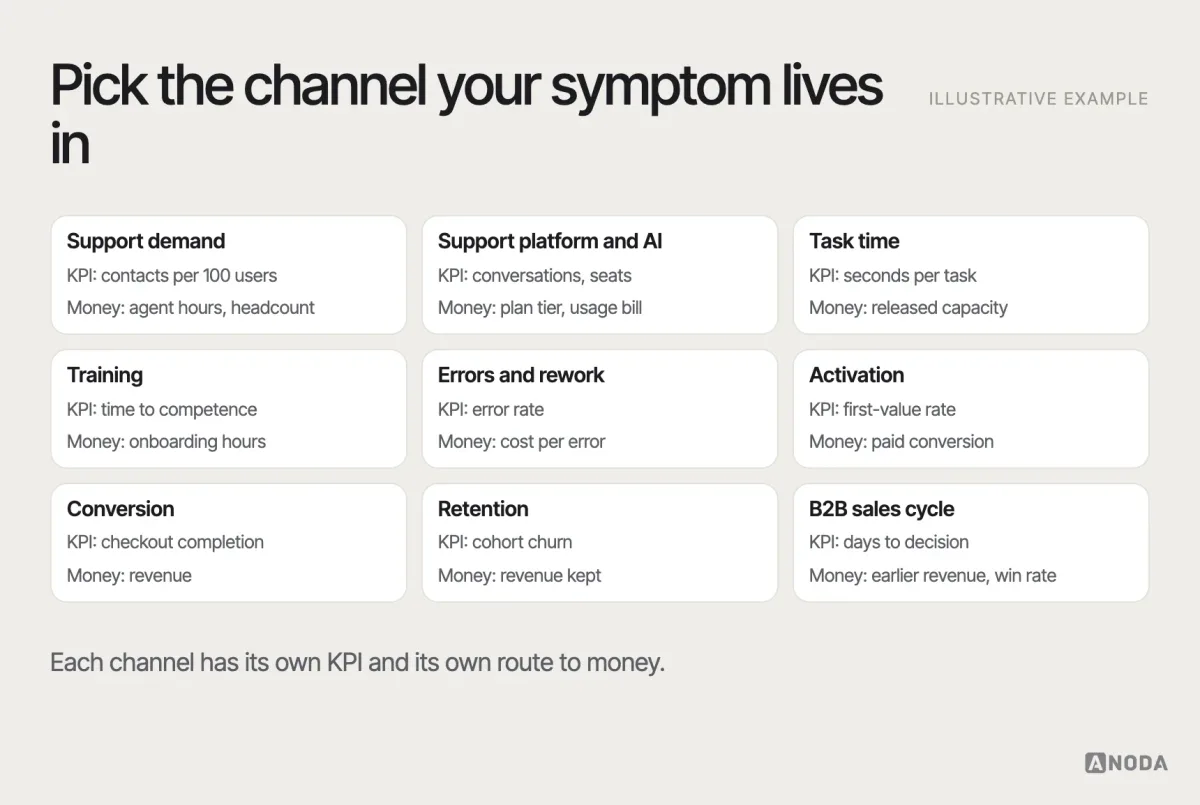

The benefits UX can actually affect

UX changes show up in money through a limited number of channels. Knowing them helps you pick the right KPI for the symptom.

What does UX affect? First, the number of support agents — roughly, how many jobs you open in your outsourced support centre. Then how many tokens you burn and which plan your support platform pushes you into, because that depends on the number of users. Then the hours spent processing all of it.

A few common models, each a hypothetical structure you would fill with your own data:

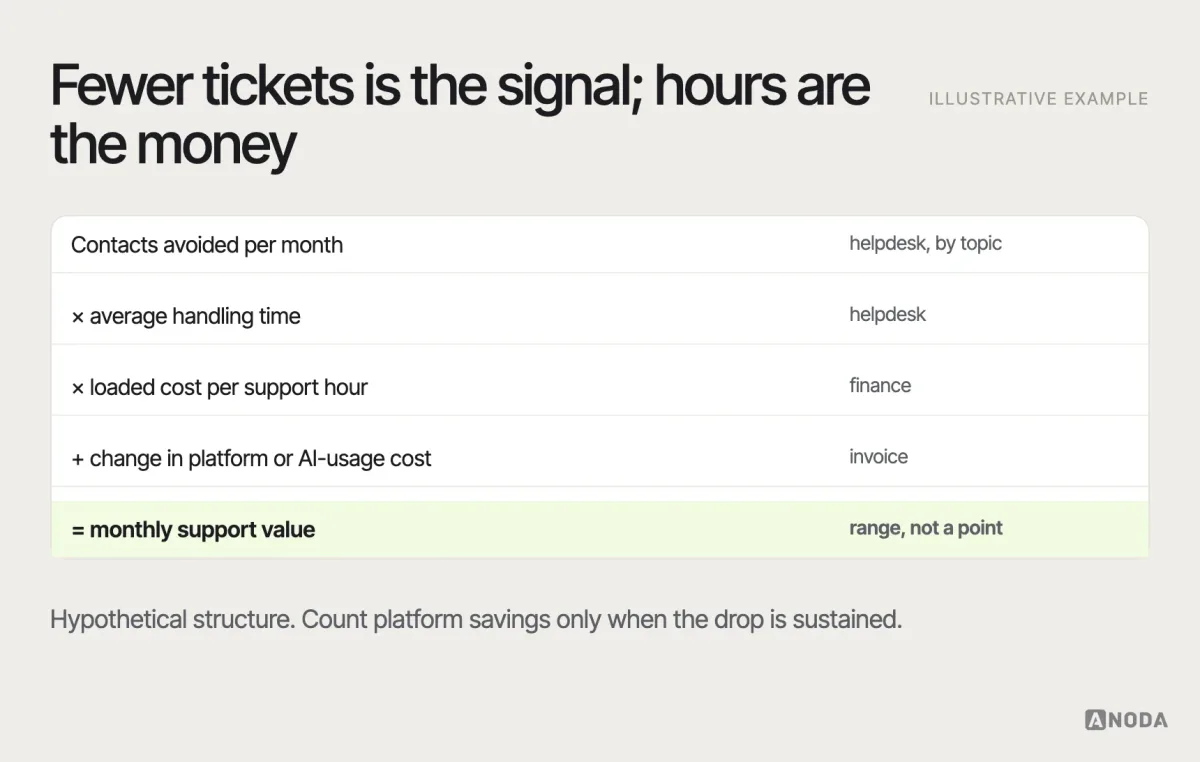

Support. Fewer contacts on a topic × handling time per contact × loaded cost per support hour — plus any platform or AI-usage costs tied to contact volume. Support platforms and AI assistants are often priced by seats, conversations or usage, so a drop in contact volume can move you to a cheaper plan — a saving that is easy to verify on an invoice. Count it only if the drop is sustained, not after one quiet month.

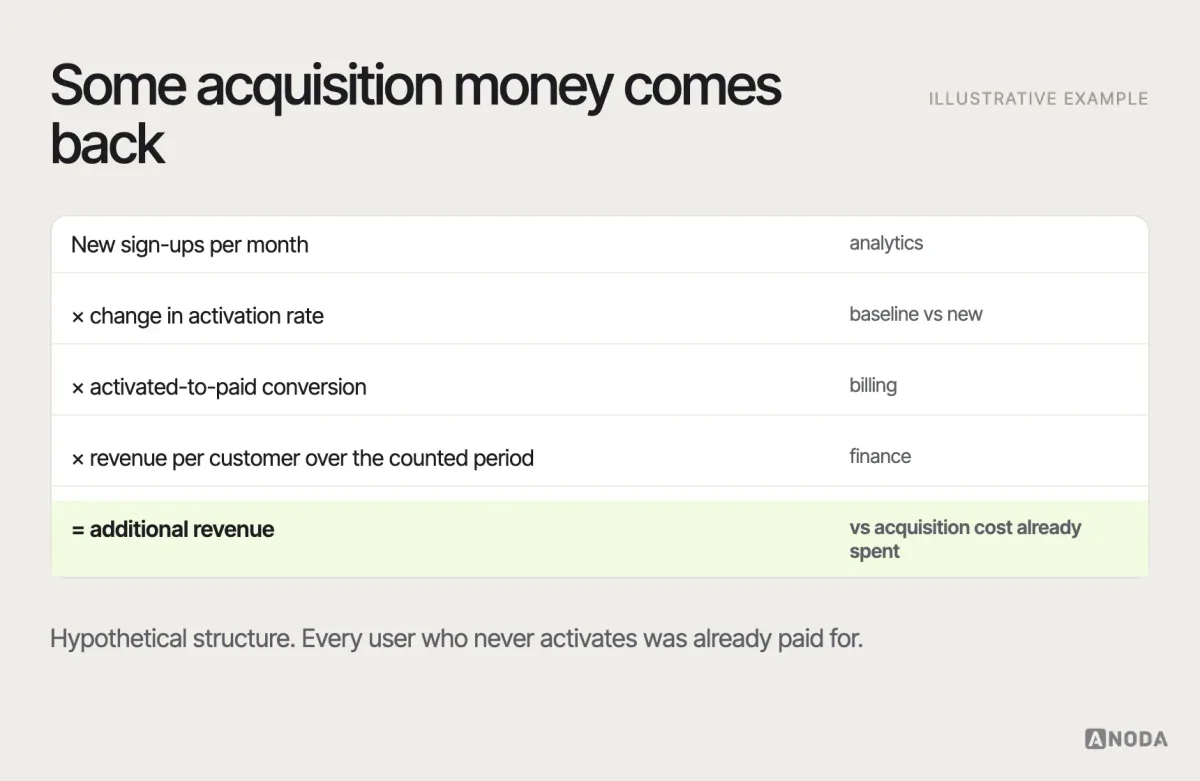

Activation. Additional users reaching first value × the share of them who go on to pay × the value of a paying customer over the period you are willing to count. Remember that you already paid to acquire every one of those users.

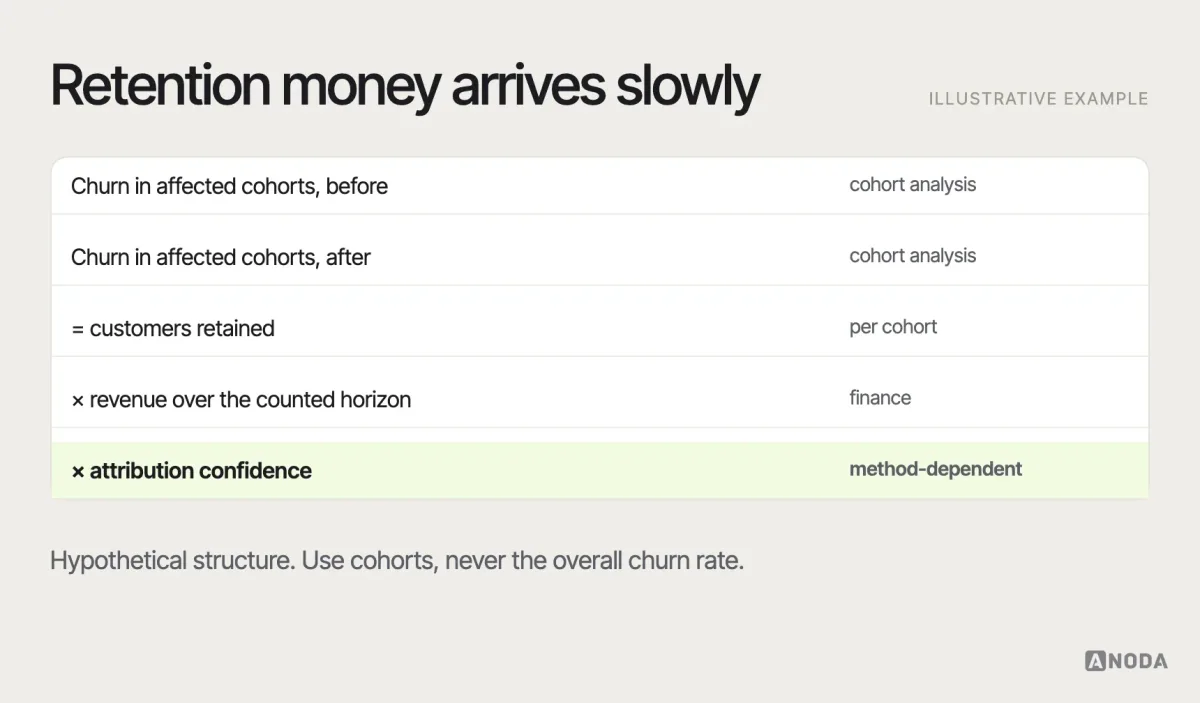

Retention. Customers who stay instead of churning × their revenue over the horizon you count, discounted for how sure you are that the UX change caused it.

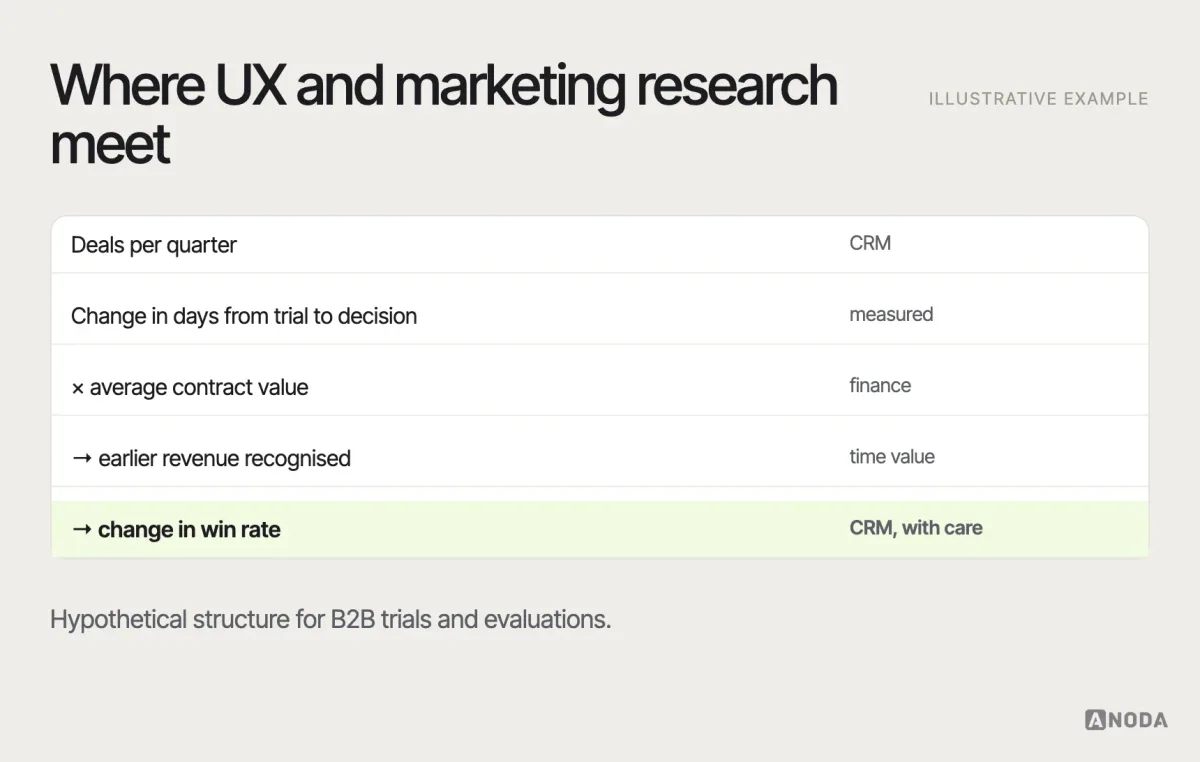

B2B sales cycle. Shorter evaluation or onboarding for trial accounts × deals per period × the value of earlier revenue or higher win rates — a model where marketing and UX evidence meet.

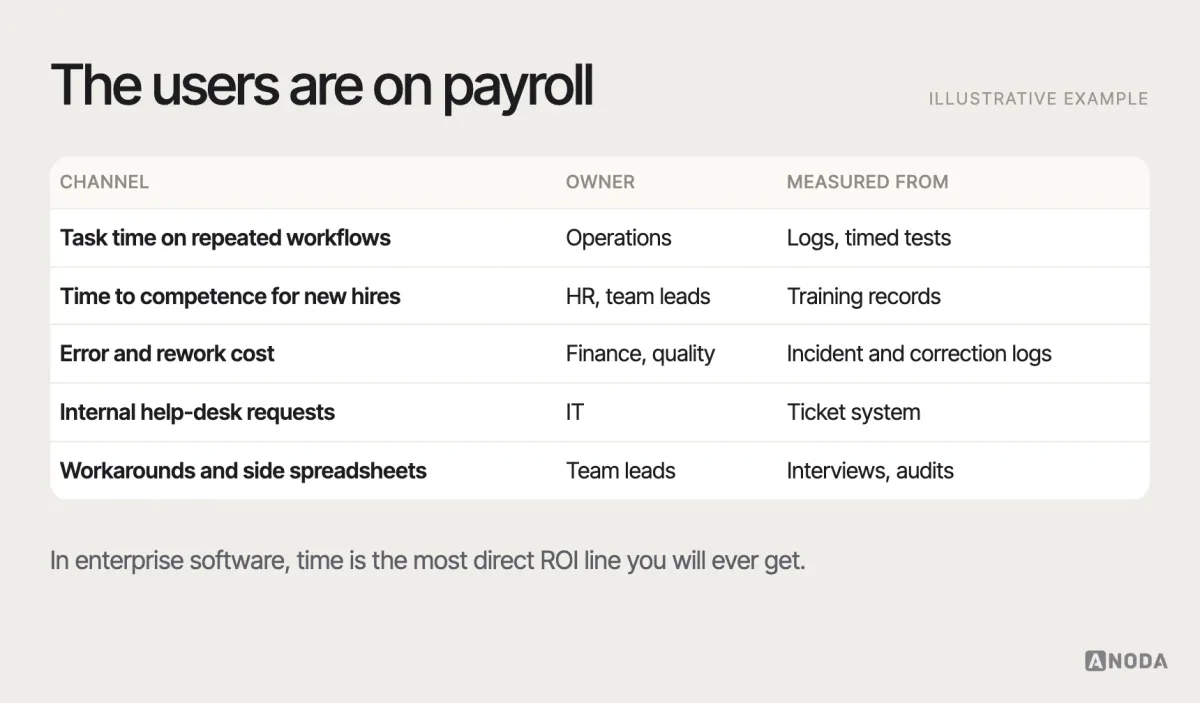

Enterprise UX: productivity, training and errors

Internal and enterprise products rarely have conversion rates to point at, but they often have the clearest ROI of all, because the users are paid employees doing repeated work. The value channels are productivity on repeated tasks, shorter training for new staff, fewer errors that cost money to fix, and less time lost to workarounds and help requests. Stakeholders in enterprise settings — operations, finance, IT, compliance — each care about a different channel, so the case needs to speak to each of them in their own terms. Reliability belongs here too. In our hypothetical warehouse, an app that crashes sends a worker to find a supervisor, wait for a restart and re-enter what was lost. Fewer crashes is time returned to every shift — and one of the easiest effects to measure, because the incidents are already logged.

Choose the time horizon before you count

Benefits keep arriving after a change ships; costs mostly arrive before. That makes the time horizon one of the most powerful — and most abused — inputs in any ROI calculation. Count three years of benefits against three months of cost and almost anything looks brilliant.

Agree the horizon with finance in advance, and use the one the business already uses for similar investments — often one year for operational improvements, sometimes longer for platform work. Include the maintenance cost over the same horizon. And discount benefits that depend on the product staying unchanged: if the flow is likely to be redesigned again in eighteen months, a five-year benefit stream is fiction.

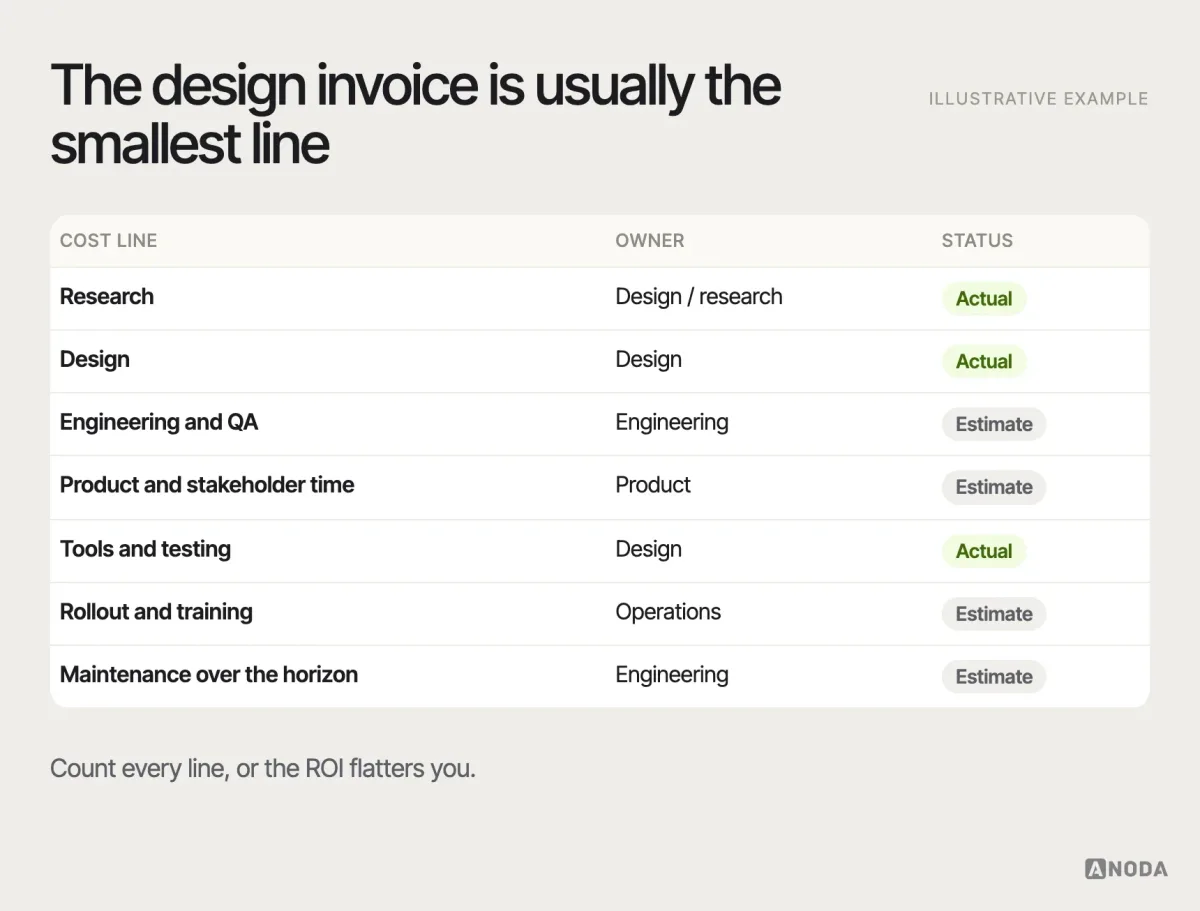

Count the fully loaded cost

The other half of the formula is the one teams most often understate. The cost of a UX initiative is not the design invoice. It includes research and design time, engineering and QA to build the change, product and stakeholder time spent in reviews, tools and testing costs, rollout, training and communications, and the ongoing cost of maintaining what you built.

The average hides the result

Always break results down by segment. A change that saves time for new users but slows down experts can look neutral on average. A checkout fix that helps mobile users can disappear in a desktop-heavy total. An onboarding change can lift activation in one acquisition channel while another channel, with different expectations, stays flat.

Segment by the dimensions that plausibly change the effect: device, user tenure, role, market, plan, acquisition channel, and the working conditions you identified for the real persona. Decide the segments before you look at the results, so you are not hunting for the one slice that makes the project look good.

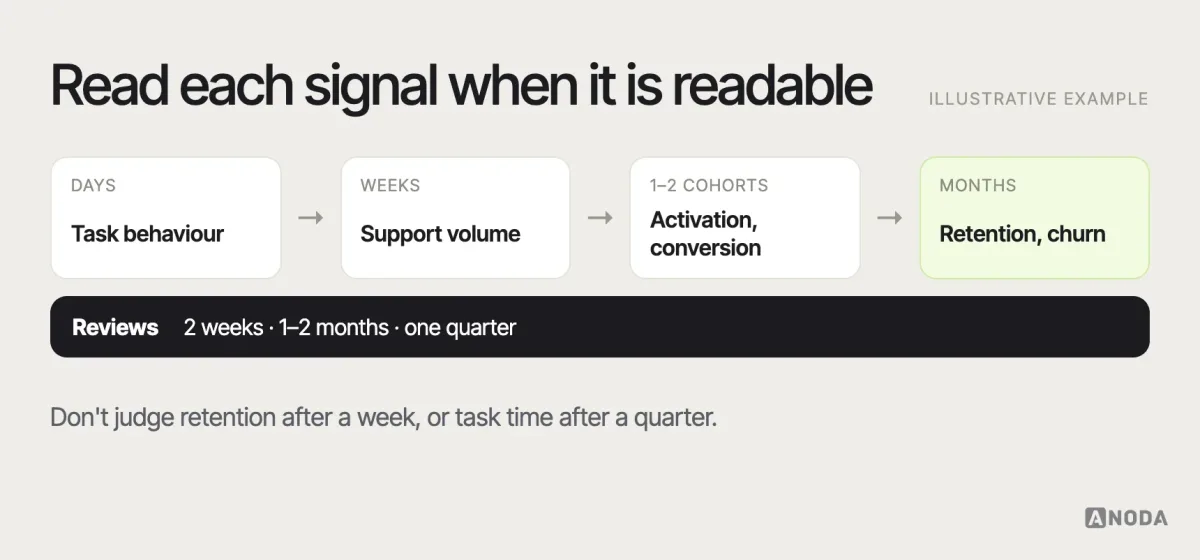

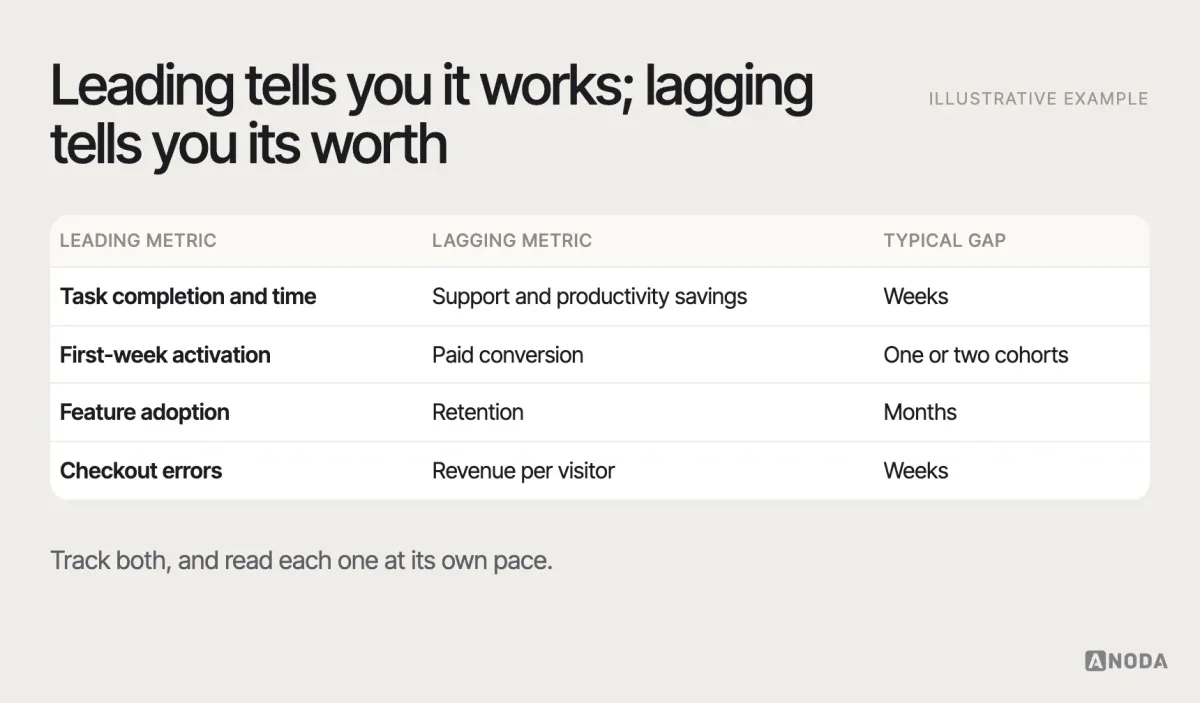

Leading and lagging metrics, and the lag between them

Money usually arrives late. Revenue from better retention shows up months after the change; the change in behaviour shows up in days. Track both: leading indicators that tell you early whether the mechanism is working, and lagging indicators that eventually carry the money.

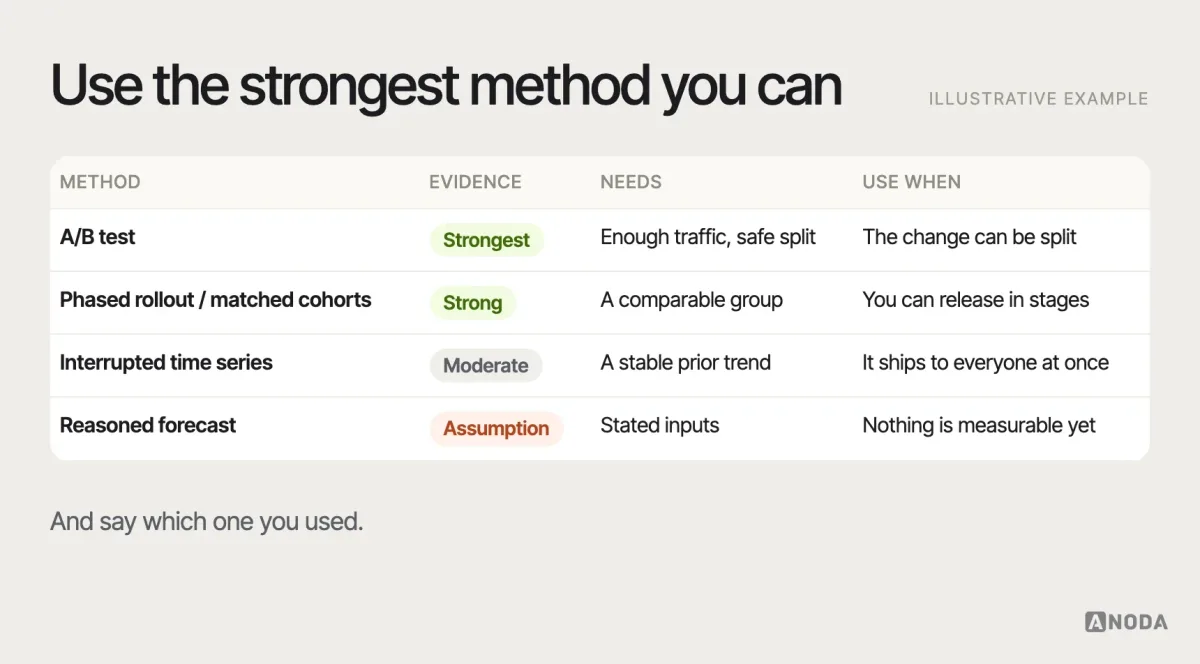

Attribution: how sure can you be?

Almost nothing in a product changes alone. Marketing campaigns, pricing, seasonality, new features and sales pushes all move the same numbers. Attribution is the question of how much of the change you can honestly credit to the UX work — and the answer depends on the method you could use.

• A/B test. The strongest evidence where you have enough traffic and the change can be split safely. Decide the primary metric before the test starts.
• Phased rollout or matched cohorts. When you can’t split traffic, release to one group, region or team first and compare with a similar group that hasn’t changed yet.
• Interrupted time series. When the change ships to everyone, compare the trend before and after, checking for other events at the same time.
• Reasoned forecast. When nothing can be measured yet, build the model from the chain with stated assumptions — and label it as a forecast.

Our guide to A/B testing in UX design covers when a split test is worth running. When it isn’t, usability testing still gives controlled evidence that a changed flow improves task completion or reduces errors before you scale the assumption.

Ranges, not points

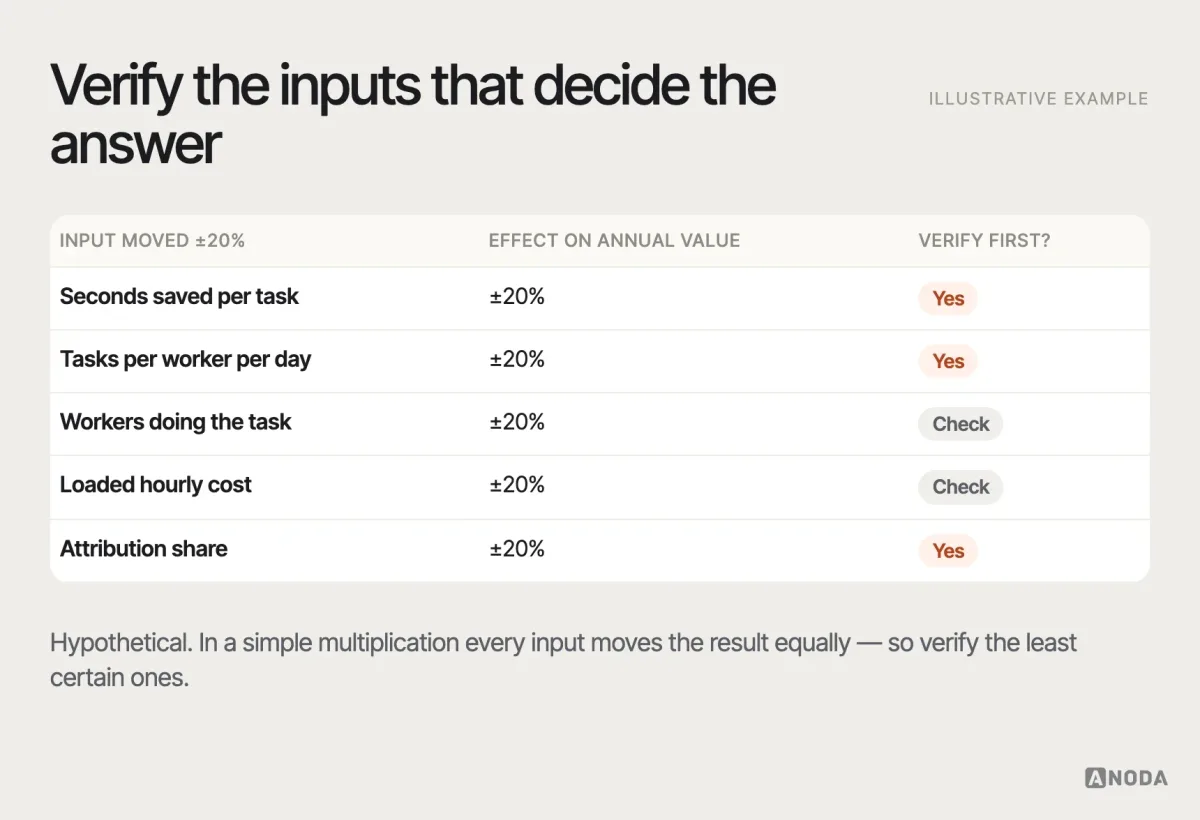

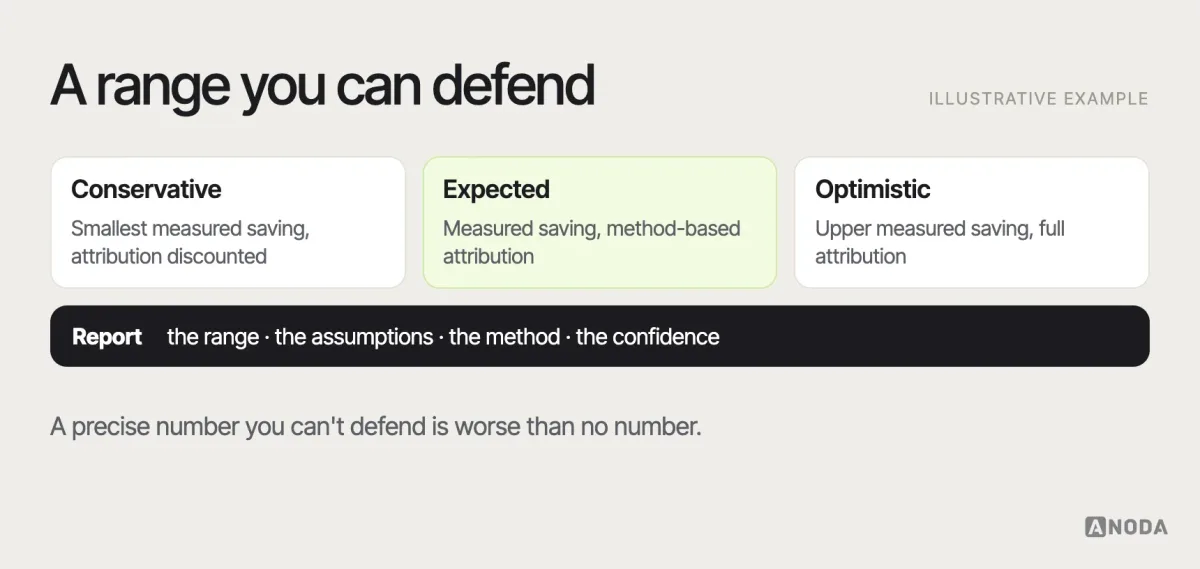

A single ROI percentage suggests a precision you almost never have. Present a range instead: a conservative case, an expected case and an optimistic case, driven by the inputs you are least sure about. Show which inputs move the result most, so decision-makers know what to verify first.

Qualitative evidence still counts

Not everything that matters fits in the ROI formula, and pretending otherwise produces false precision. Watching operators finish a task without swearing at the screen, reading support tickets that change from “how do I…” to feature requests, hearing a sales team stop apologising for the product in demos — these are real signals. They are not a substitute for measurement, but they are strong supporting evidence, and they often appear before the lagging metrics do.

Report them alongside the numbers, clearly labelled as qualitative, with how many people and situations they come from. Finance teams trust a report more, not less, when it separates the measured from the observed.

Make the business case before the work starts

The best time to talk about ROI is before anyone designs anything. A forecast built on the chain — symptom, users, baseline, intervention, expected behavioural change, volume, mechanism, cost — tells you whether the work is worth starting at all, and which inputs you need to verify first.

Keep the forecast honest. Use conservative assumptions for the change in behaviour, name every input you have not verified, and show the result as a range. If even the optimistic case does not cover the cost, you have saved the budget. If the conservative case covers it comfortably, you have a strong reason to proceed. Most real cases sit in between, and the forecast tells you which uncertainty to reduce first — often with a quick usability test or a look at the logs rather than a large research programme.

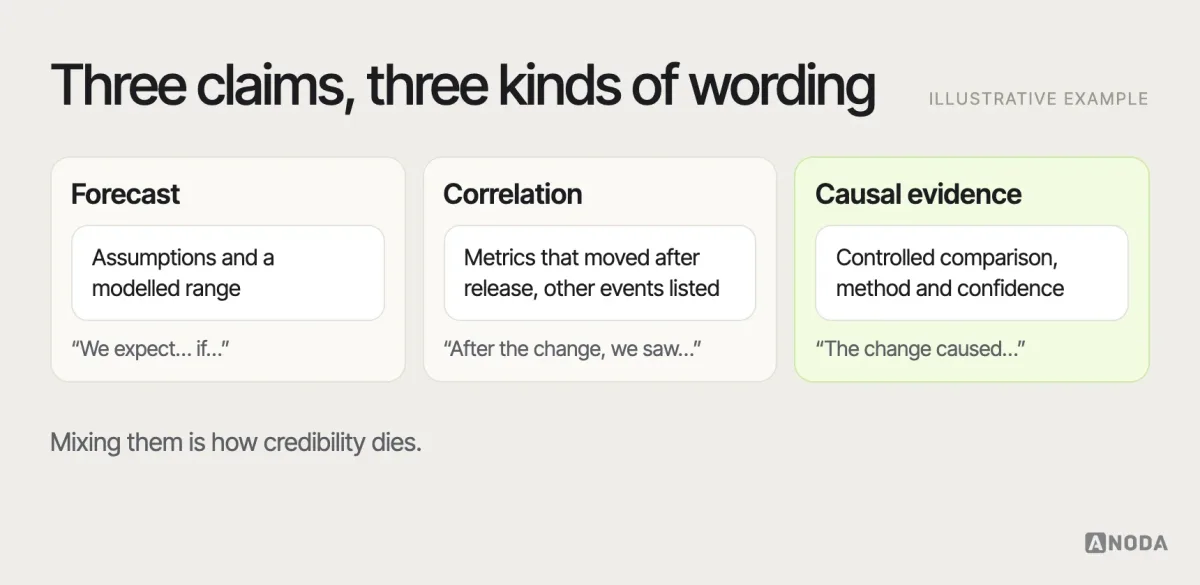

Forecast, correlation and causal evidence are three different claims

Keep three kinds of statement apart, and label them every time:

• Forecast ROI: what the change should be worth if the assumptions hold. Useful for deciding whether to start.
• Observed correlation: what moved after the change, without proof that the change caused it.
• Causal evidence: what moved because of the change, from a controlled comparison.

Mixing them is how UX teams lose credibility with finance: a forecast presented as a result, or a correlation presented as proof, will be found out eventually. The rooster crows and the sun rises; that is not a business case.

Continue, change or stop

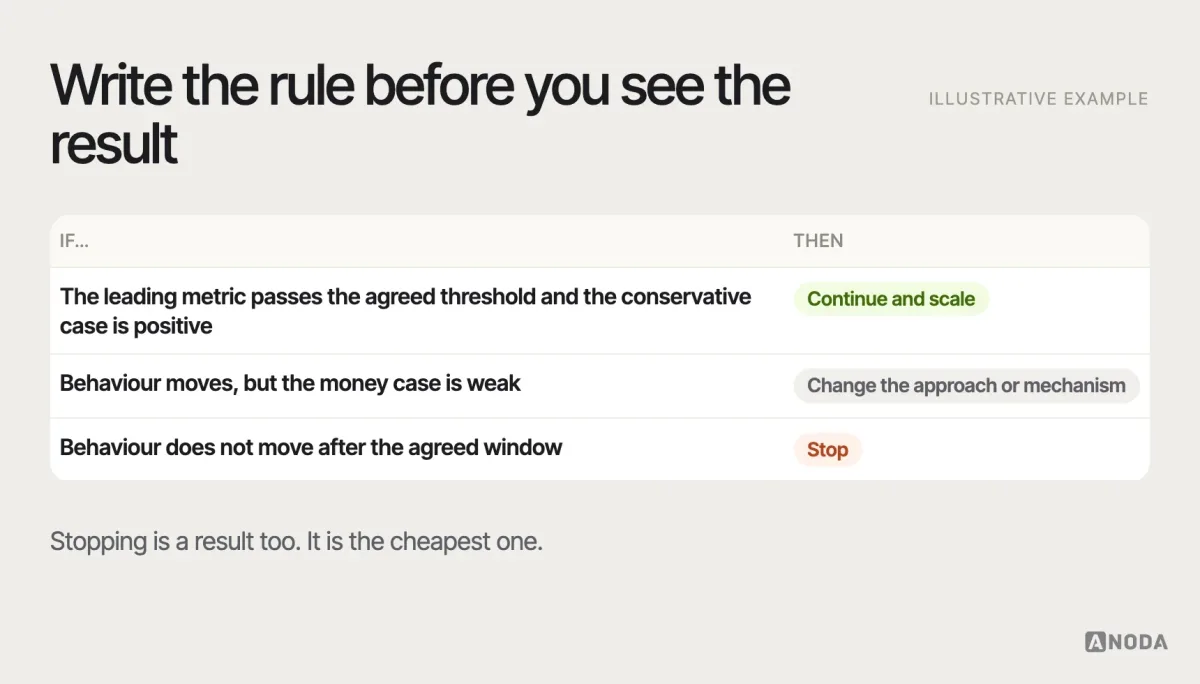

The point of measuring is to decide. Agree the decision rule before you see the result: what would make you continue and scale the change, what would make you change the approach, and what would make you stop.

Stopping is a legitimate result, and so is changing direction. A flow that moved behaviour but not money may need a different mechanism — the saved hours might matter more as avoided hiring next year than as throughput today. If the behaviour does not move after a fair window, the mechanism was wrong, and continuing to invest is good money after bad.

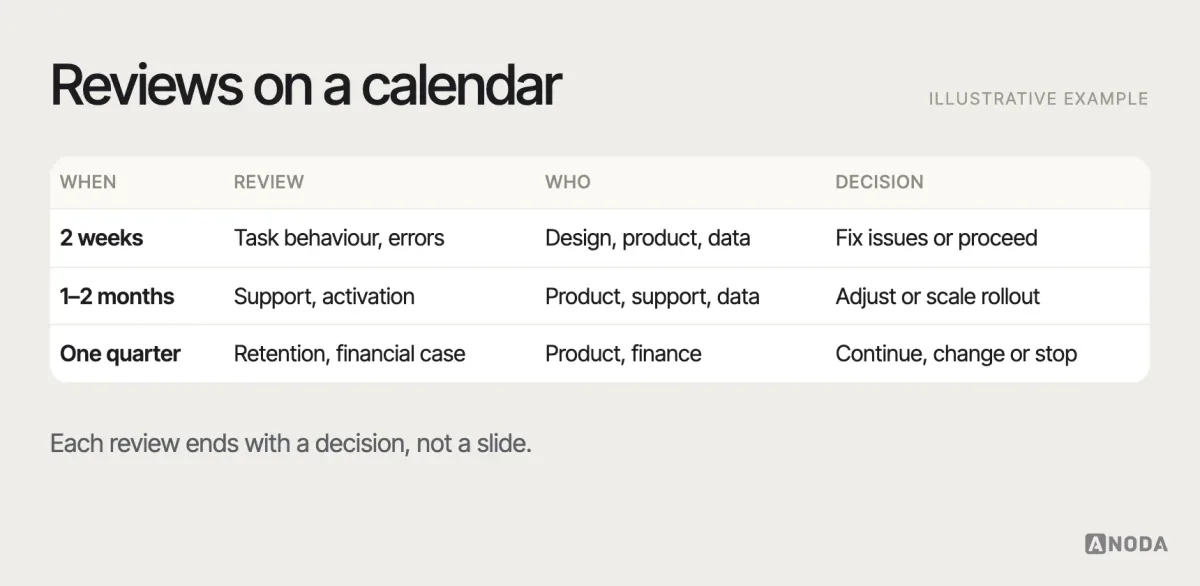

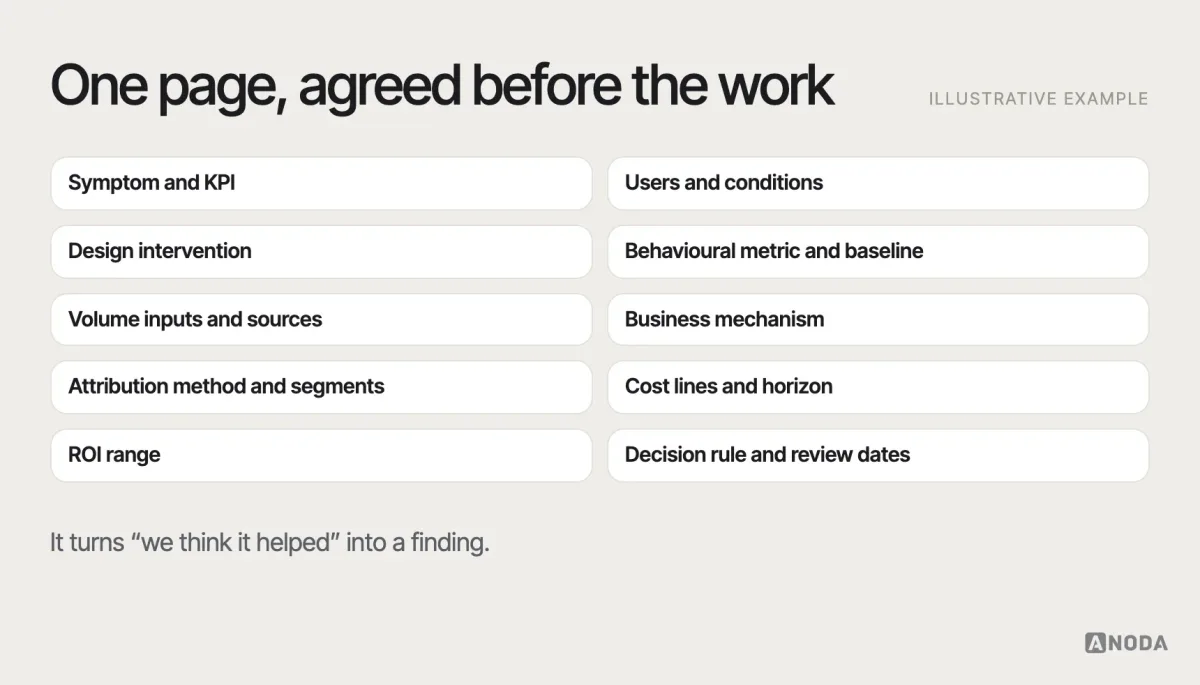

Build a measurement plan and a post-launch review

Put it all on one page before the work starts — and review it on a schedule after launch.

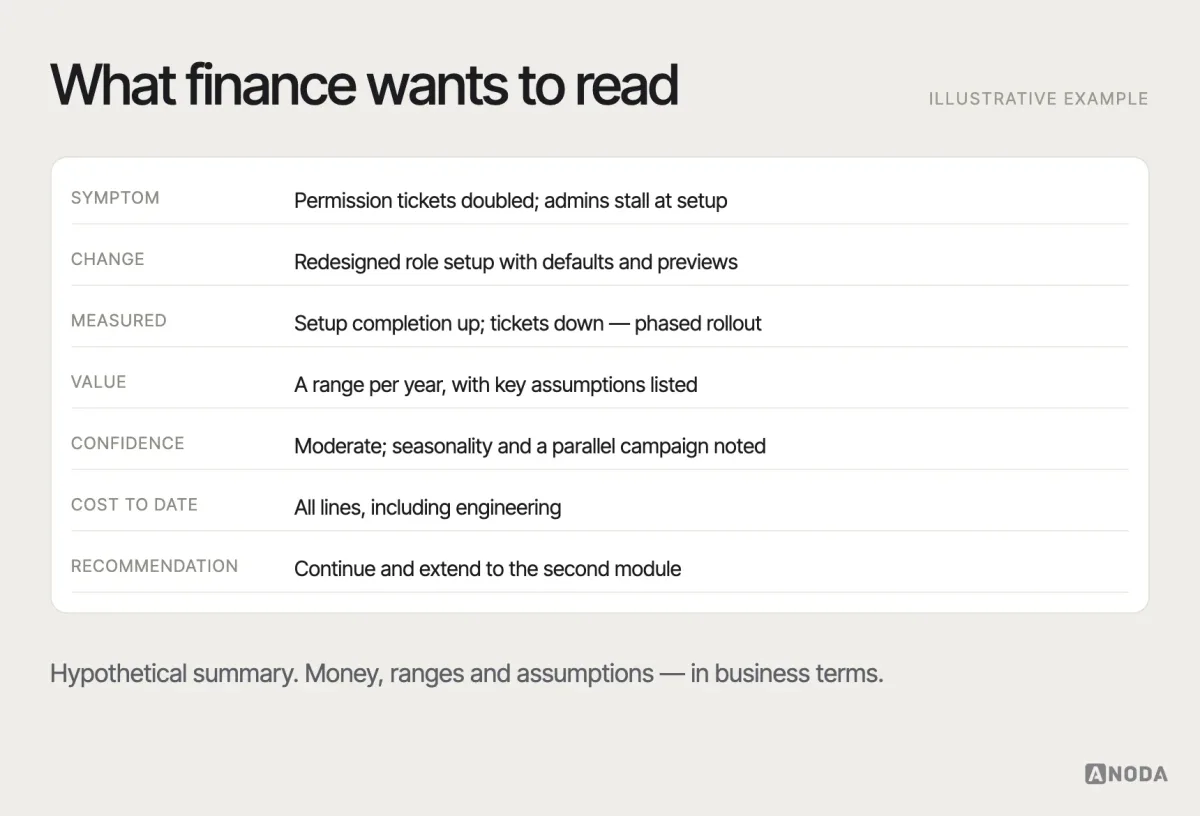

When you report to leadership, keep it to one page: the symptom, what changed, what moved, what it is worth as a range, how sure you are and what you recommend.

What if you are a small team?

Startups and small product teams often assume ROI measurement is for enterprises with analytics departments. The opposite is true: small teams can least afford to spend money on work that changes nothing. The method scales down. One symptom, one KPI, a baseline pulled from the analytics you already have, a handful of usability sessions to confirm the mechanism, a change, and a comparison over a sensible window. No regression models required.

What small teams should avoid is the opposite extreme — building elaborate dashboards before they have a question. Start with the symptom that is costing you the most, measure that, and add rigour only when the decision is expensive enough to need it.

Why ANODA starts with the work your business pays for

ROI conversations stall when design is presented as a new visual style and finance has to guess what it changes. Another dashboard will not fix that. ANODA connects the expensive user task to a concrete design decision: where people repeat work, lose a sale, make an avoidable error or need a person to get unstuck.

In Vecna Robotics, the design work connected a warehouse operations Console, a compact handheld and Customer Alerts. We mapped alert handling from claim through reassign, snooze and resolve, and delivered organised prototypes and UI kits to Vecna’s team. That is a practical starting point for an ROI conversation: a named operational task, its decisions and the people doing it.

Bring us the journey that costs your team money. ANODA turns it into a prioritised design scope and a clear plan for evaluating the business change, so the budget discussion moves from liking screens to improving the work. Discuss the product with ANODA.

Who owns the measurement

UX ROI fails when it belongs to nobody. Design owns the intervention and the behavioural hypothesis. Product owns the KPI and the decision. Data or analytics owns the baseline, the method and the confidence. Finance owns the monetary conversion — loaded costs, revenue values, the time horizon the business is willing to count. Operations or support owns the operational inputs such as volumes and handling times.

Put those owners on the measurement plan by name. A calculation that finance helped build is one finance will believe. When the evidence points to a validated opportunity and the next step is changing the experience itself, that is where UI/UX design work begins — with the measurement plan already attached.

The mistakes that make UX ROI claims fall apart

• Leading with a universal statistic. Industry-wide “every dollar returns X” numbers are not your result and never will be.
• Starting from a visual refresh. Moving buttons without a business reason is not an investment thesis. Unless you are Apple, you need a benefit.
• No baseline. “It feels faster” is not a measurement.
• Scaling without volume. Per-task savings multiplied by guessed frequencies.
• Counting the same hours twice. Avoided hiring and added throughput from the same released time.
• Treating time as cash. Released capacity is valuable only if the business realises it somehow.
• Presenting correlation as proof. The launch week also had a campaign.
• Understating cost. Only the design invoice in the denominator.

Be the most commercially minded person in the room about your own product. It is the surest way to make UX work matter — and the reason nobody will seriously claim it can be replaced by a prompt.

Stop asking whether the redesign looks better. Ask what economically meaningful condition should change — then name the symptom, baseline it, change the flow, measure the difference, translate it into cost, capacity or revenue, and compare it with the full cost of the work.
