A Comprehensive Guide to Wireframe Structure and its Role in the Design Process

A beautiful screen can hide an expensive product mistake. If your team agrees on the visual style before it agrees on the user journey, development inherits missing steps, conflicting navigation and decisions nobody made. Wireframe structure gives those decisions a place to become clear before you pay to build and rebuild them.

What is a Wireframe Structure?

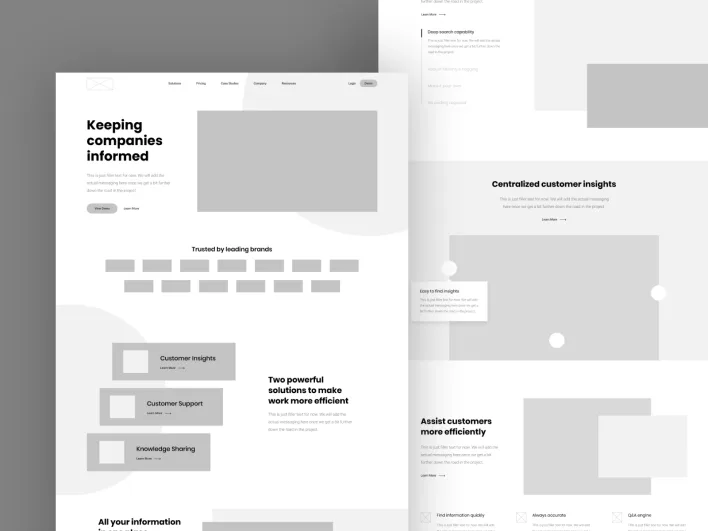

Source:  justinmind

A wireframe structure represents the visual guide for the user interface (UI) and outlines the basic layout of key elements on a web page or mobile app. Often regarded as the backbone of the design process, wireframes help to visualize how the final product will look and behave. The structure focuses on functionality rather than aesthetics, allowing UX designers to prioritize user needs, information architecture, and user flows without the distraction of visual design elements.

Types of Wireframes: Low Fidelity, Mid Fidelity, and High Fidelity

There are several types of wireframes that can be used depending on the stage of the project and the amount of detail required. The three primary types of wireframes are:

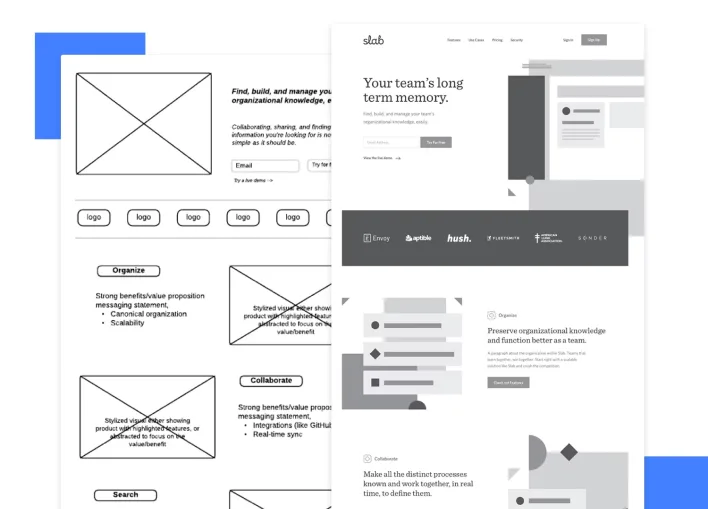

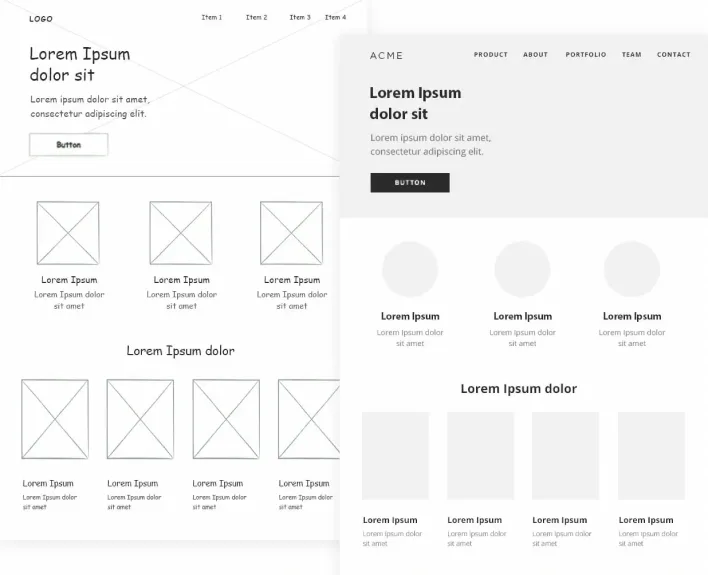

• Low Fidelity Wireframes: These are basic, often hand-drawn representations that focus on layout and structure without diving into too much detail. Low fidelity wireframes are typically used during the early stages of the design process, where user flows and key elements are mapped out. They help the project team to focus on the user’s perspective rather than the aesthetics of the final design.

Source:  skillcrush

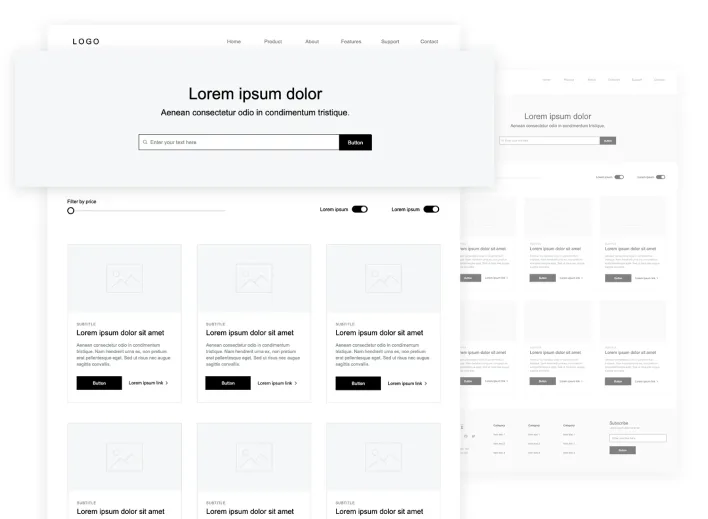

• Mid Fidelity Wireframes: With a bit more detail than their low-fidelity counterparts, mid fidelity wireframes strike a balance between simplicity and specificity. These wireframes include more visual details, page structure, and basic functionality, often incorporating elements such as secondary navigation and placeholder body content.

Source:  skillcrush

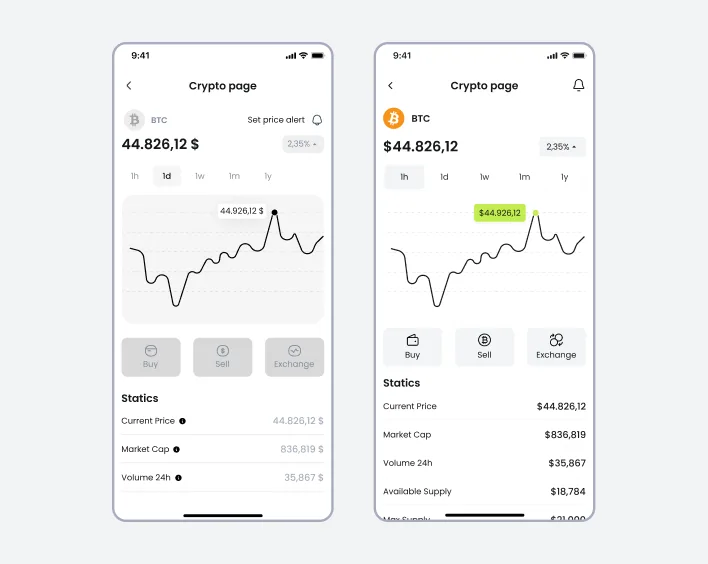

• High Fidelity Wireframes: These wireframes are the most detailed and closely resemble the final product. High fidelity wireframes add precise layout, content and interface detail. Linking screens and defining interactions turns the structure into a prototype for testing behavior; visual detail alone does not make a wireframe interactive. Together, the wireframes and prototype give the team a clearer blueprint for design and development.

Source:  skillcrush

The Purpose of Wireframing in Design

The primary goal of wireframing is to map out the user experience (UX) and understand the user’s journey through the user interface. Wireframes are used to ensure that the design team and stakeholders are on the same page regarding the functionality and flow of a web page or app. This process helps to visualize the information architecture, define user needs, and test basic functionality before adding more complex interactive features.

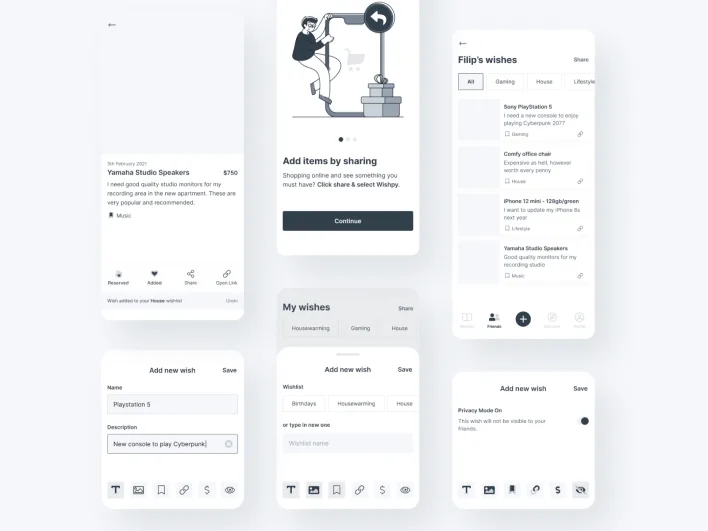

Source:  shutterstock

Wireframes clarify what needs to be designed without overwhelming the design teams with too much detail early on. They also highlight key elements of each screen, such as calls to action, page layout, and navigation.

Wireframe Fidelity: How Much Detail is Needed?

The level of detail in a wireframe depends on its wireframe fidelity—or how closely it resembles the final product. As mentioned, low fidelity wireframes are often created digitally or drawn using pen and paper to map out the initial wireframe. They are used during the early stages of the project to guide the design teams toward the final design.

High fidelity wireframes, on the other hand, include more detailed wireframe designs that reflect specific features and visual details of the user interface. These high fidelity wireframes are ideal for user testing, gathering user feedback, and refining the final product before development begins.

The Wireframing Process

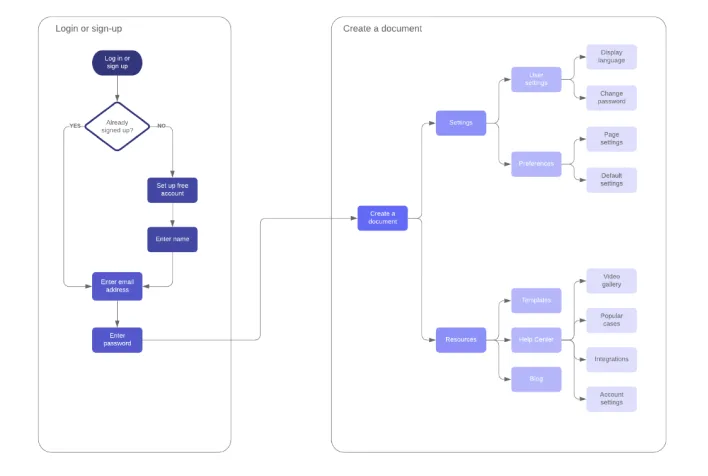

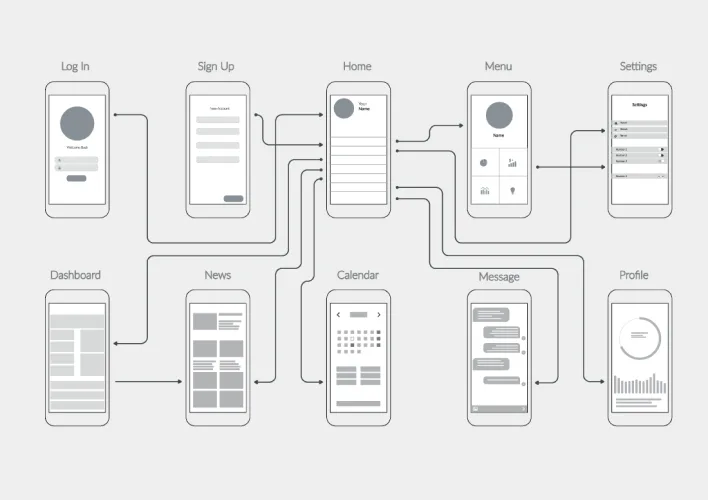

The wireframing process is typically an iterative process that involves collaboration between UX designers, project managers, developers, and stakeholders. It starts with understanding the business requirements and user needs to create a wireframe design that meets those goals. As the process moves forward, wireframes clarify how the user flows from point A to point B, with each iteration adding more detail to the design.

Source:  justinmind

Throughout the wireframing stage, it’s essential to use the right wireframing tools to streamline the process. There are many digital tools available that help teams create wireframes with precision and flexibility, allowing for faster revisions and smoother collaboration. Some teams even utilize free templates to speed up the wireframing process.

Recommended reading: Build app wireframes step by step

Key Elements of a Wireframe Design

Whether you’re working on a website wireframe or an app wireframe, certain key elements must be included to ensure a functional and user-friendly design. These include:

• Navigation: Primary and secondary navigation are essential for guiding users through the product. Clearly defined menus and links should be part of the wireframe.
• Body Content: The main content area where page elements such as text, images, and videos will reside.
• Interactive Features: For interactive wireframes, elements like buttons, sliders, or forms should be included to represent the basic functionality of the product.

Source:  skillcrush

• Information Architecture: Organizing content logically is crucial for a smooth user flow. The information architecture helps users find what they need quickly and easily.

Mid Fidelity Wireframes and Their Role

In many cases, mid fidelity wireframes are the bridge between low fidelity sketches and high fidelity wireframes. These wireframes typically show wireframe maps with a page structure that outlines visual design aspects while incorporating some interactive components.

By focusing on more detail, mid fidelity wireframes help the project team ensure that every part of the design aligns with the user’s perspective. This stage often includes user testing to validate assumptions and make necessary adjustments before the final design is completed.

Creating Wireframes: The Tools and Techniques

There are several wireframing tools available that can help you make a wireframe efficiently, whether you’re working on a website wireframe or an app wireframe. Some popular tools include:

• Balsamiq: Known for its low fidelity wireframes, Balsamiq mimics the feel of pen and paper wireframes while offering the flexibility of a digital wireframe.

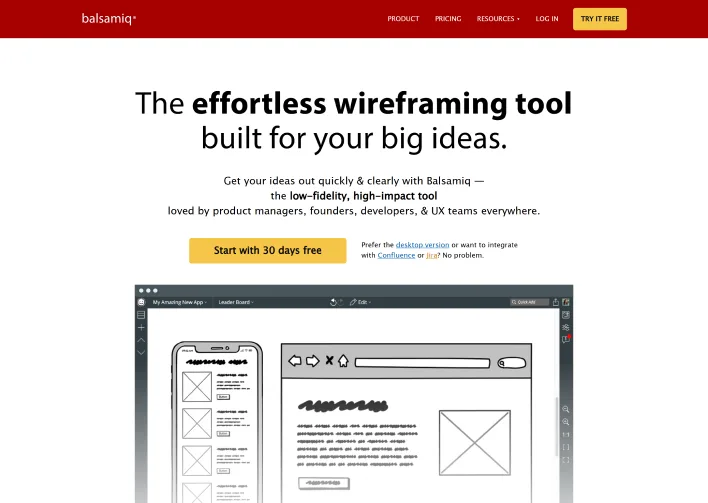

Source:  balsamiq

• Adobe XD: An existing-project tool shown in the historical example below. Adobe states that XD is in maintenance mode; for a new project, choose a supported tool that fits your team’s collaboration and handoff needs.

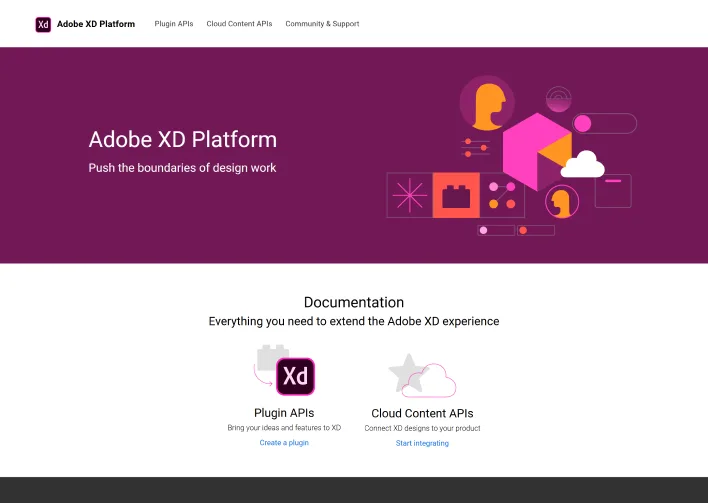

Source:  Adobe XD Platform

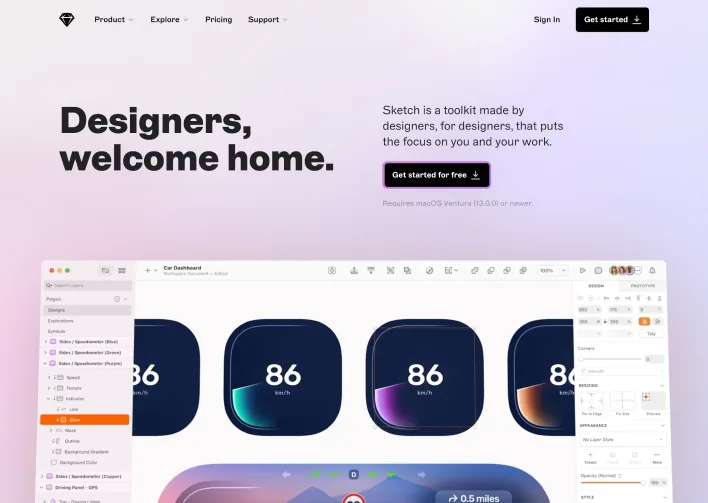

• Sketch: Widely used by UX designers, Sketch offers a robust platform for designing wireframes with seamless collaboration features.

Source:  Sketch
